Removal Procedure

WARNING: This page is about a different car, the 2018 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.
  1. Front Wheelhouse Liner Replacement (Chevrolet)Front Wheelhouse Liner Replacement (Buick) - Remove

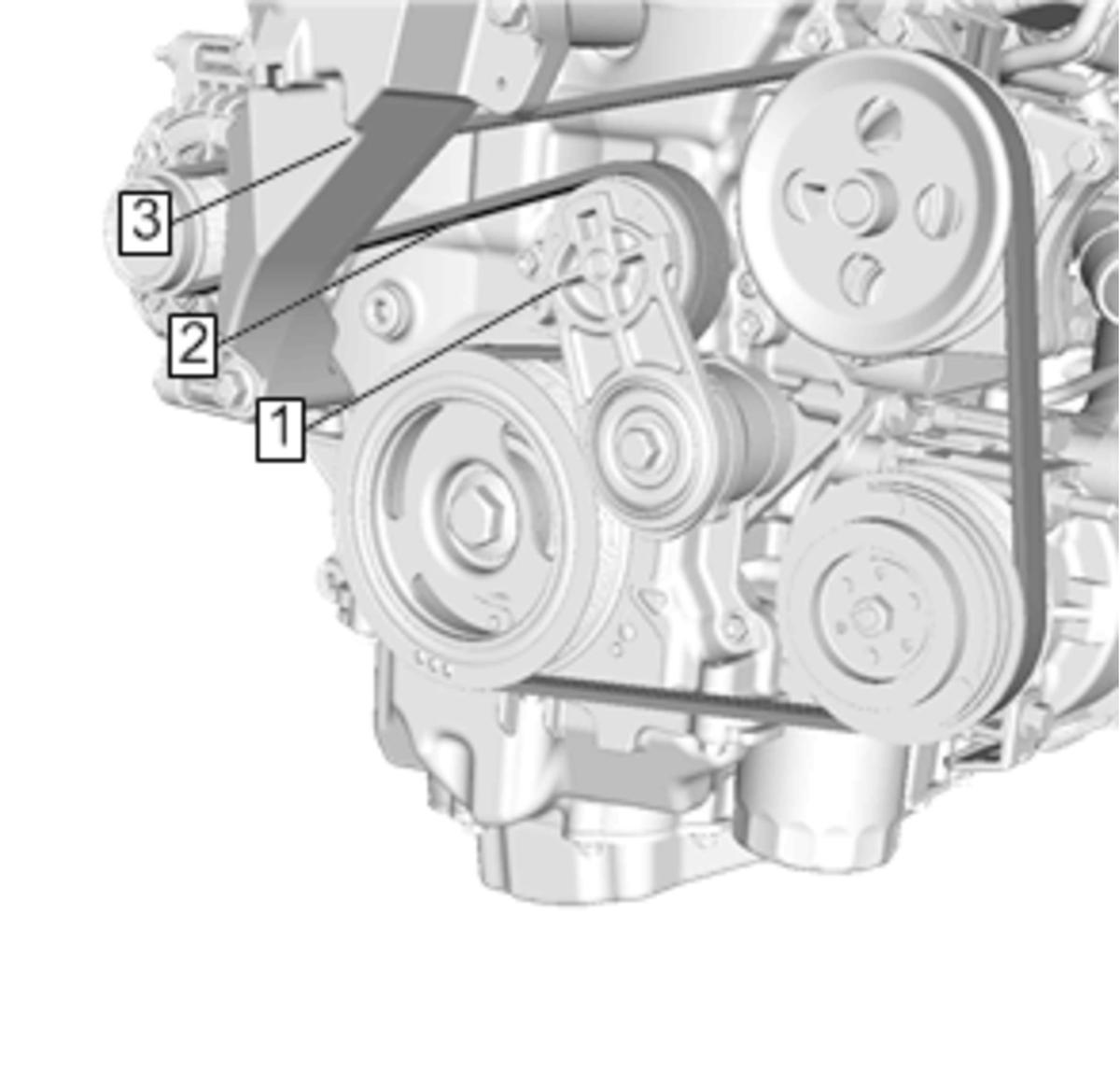

  2. GM4092315

    Tension the drive belt tensioner (1) counterclockwise and hold tension.

    3. NOTE:

    It is NOT necessary to remove the engine mount bracket (3) to remove the belt. Once the drive belt has been removed from the pulleys, navigate it past the engine mount bracket to remove.

  3. Drive Belt (2) - Remove
  4. Slowly release the tension on the drive belt tensioner.(1)
