Valve Rocker Arm and Lash Adjuster Removal

WARNING: This page is about a different car, the 2018 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

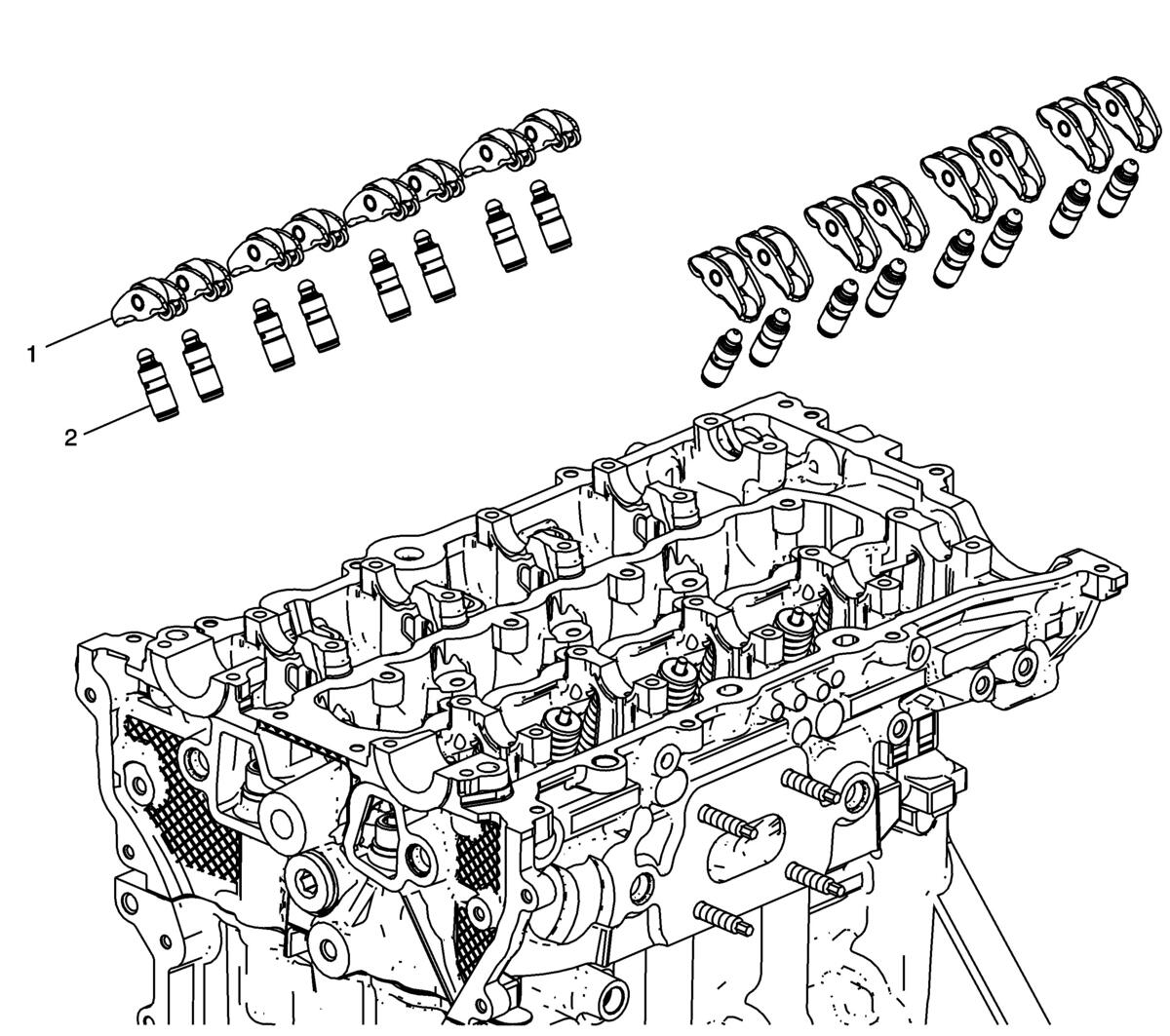

Callout	Component Name
Preliminary Procedure NOTE: Many internal engine components will develop specific wear patterns on their friction surfaces. Components MUST be separated, marked, or organized in a way to ensure installation to their original location and position. Take precautions in order to prevent interchanging of parts. Tag or mark each part immediately when removed. Indicate location, direction, or orientation when necessary.
1	Hydraulic Valve Lash Adjuster Arm Assembly
2	Hydraulic Valve Lash Adjuster Assembly

Callout

Component Name

Preliminary Procedure

NOTE:

Many internal engine components will develop specific wear patterns on their friction surfaces.

Components MUST be separated, marked, or organized in a way to ensure installation to their original location and position. Take precautions in order to prevent interchanging of parts.
Tag or mark each part immediately when removed. Indicate location, direction, or orientation when necessary.

Hydraulic Valve Lash Adjuster Arm Assembly

Hydraulic Valve Lash Adjuster Assembly
