Camshaft Actuator Removal
WARNING: This page is about a different car, the 2018 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.
Camshaft Actuator Removal

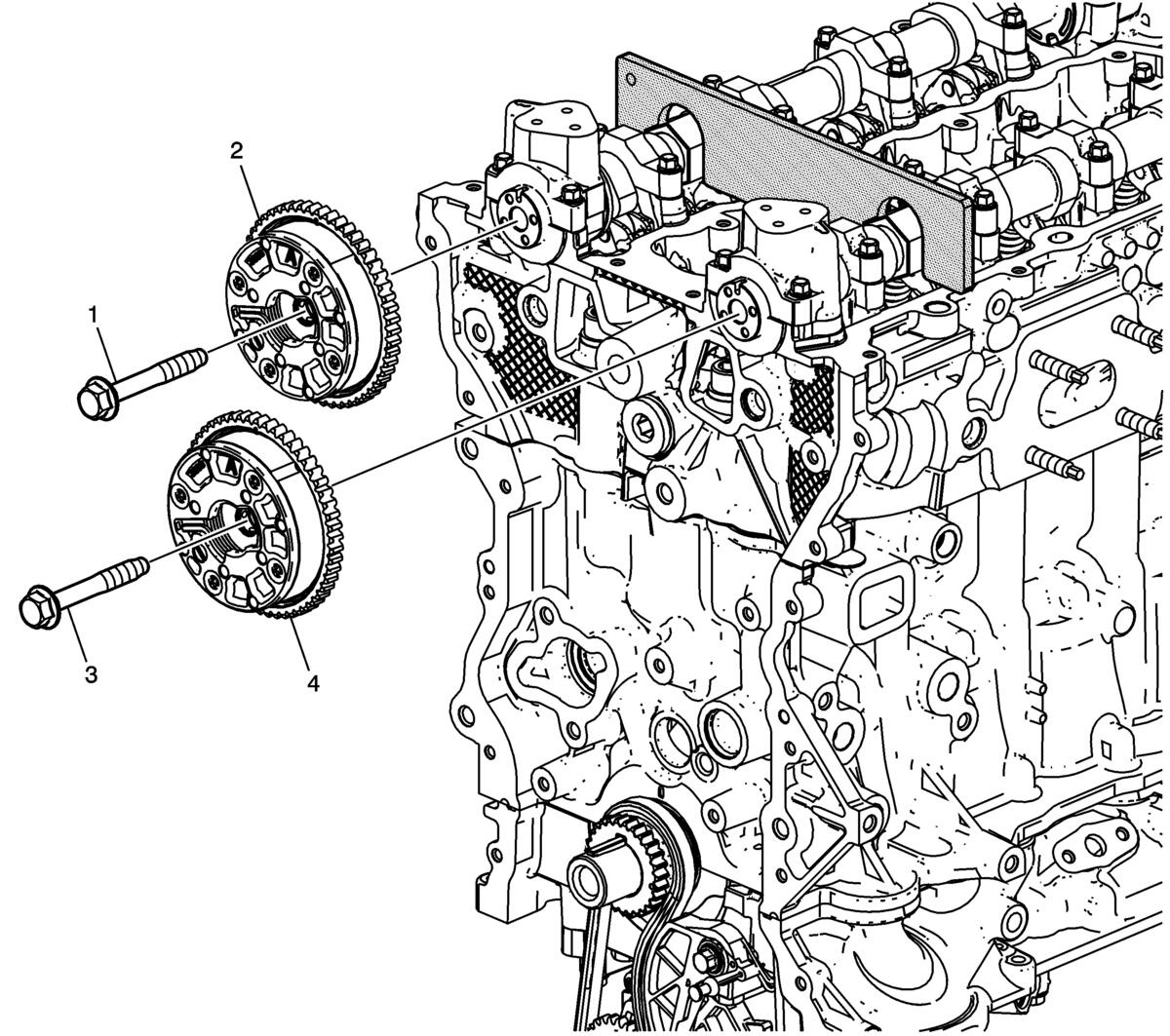

| Callout | Component Name |
|---|---|
| Preliminary Procedure Install the EN-51367 camshaft locking tool. Special Tools EN-51367 Camshaft Locking Tool For equivalent regional tools, refer to Special Tools . |
|
| 1 | Camshaft Position Actuator Bolt
NOTE:
Discard bolt. |
| 2 | Camshaft Position Actuator - Intake |
| 3 | Camshaft Position Actuator Bolt
NOTE:
Discard bolt. |
| 4 | Camshaft Position Actuator - Exhaust |
