Engine Flywheel Removal
WARNING: This page is about a different car, the 2018 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

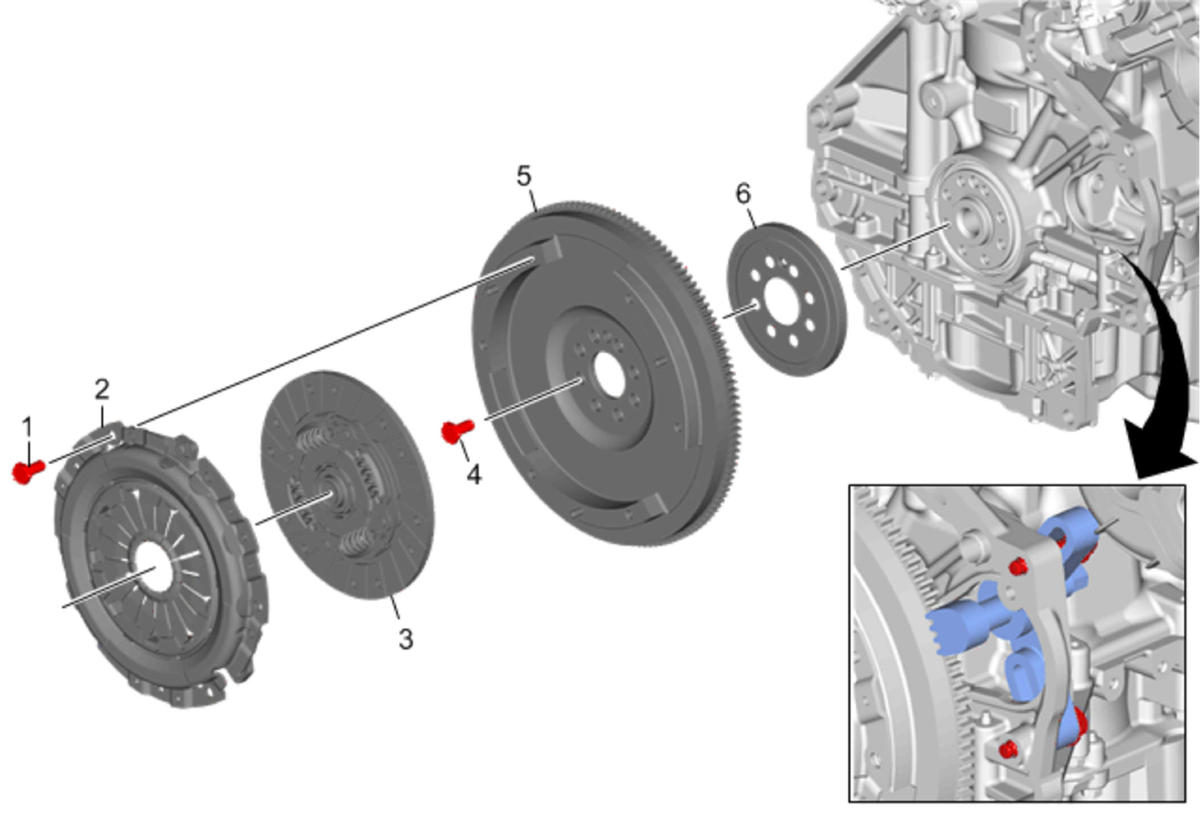

| Callout | Component Name |
|---|---|
|
Preliminary Procedure
|
|
| 1 | Clutch Pressure Plate Bolt[6x] |
| 2 | Clutch Pressure Plate |
| 3 | Clutch Driven Plate |
| 4 | Engine Flywheel Bolt[8x] |
| 5 | Engine Flywheel |
| 6 | Crankshaft Position Sensor Reluctor Ring
CAUTION:
|
