Lower Crankcase Disassemble
WARNING:
This page is about a different car, the 2018 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

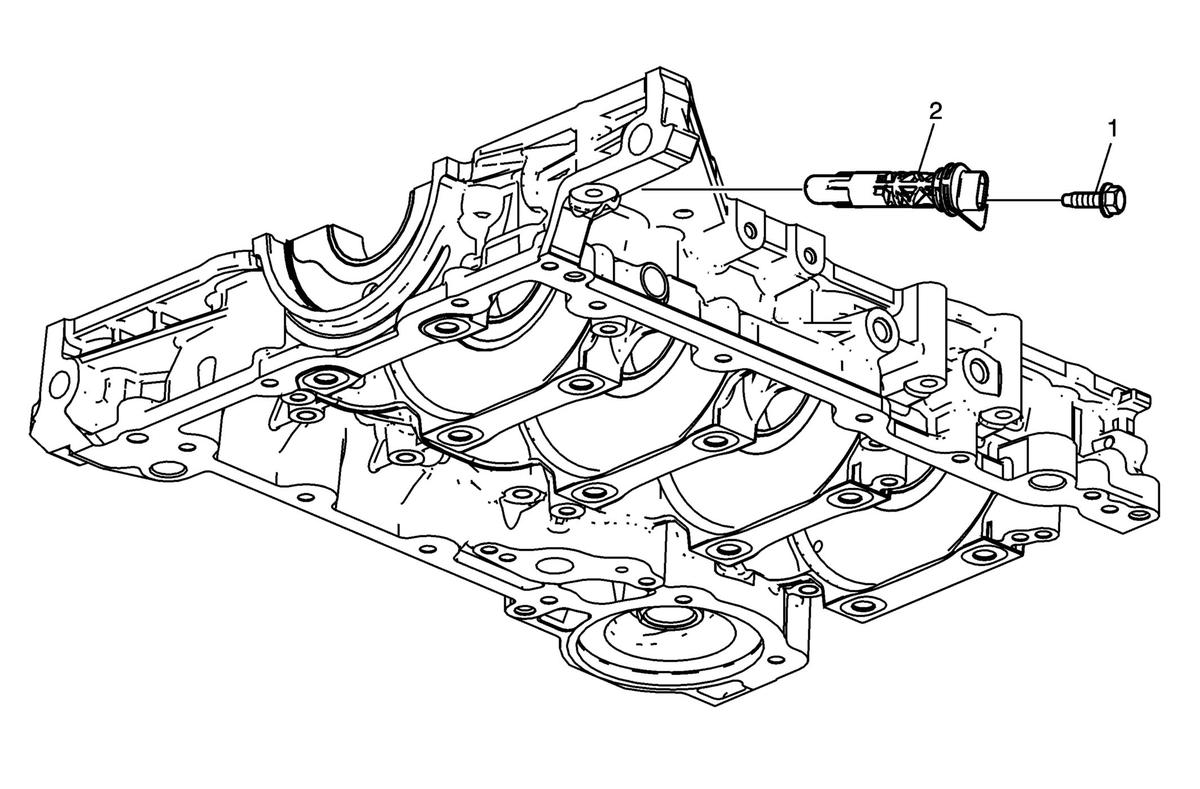

Lower Crankcase Disassemble
Callout
Component Name
1
Crankshaft Position Sensor Bolt
2
Crankshaft Position Sensor
