Upper Engine Block Assemble
WARNING: This page is about a different car, the 2018 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.
Upper Engine Block Assemble

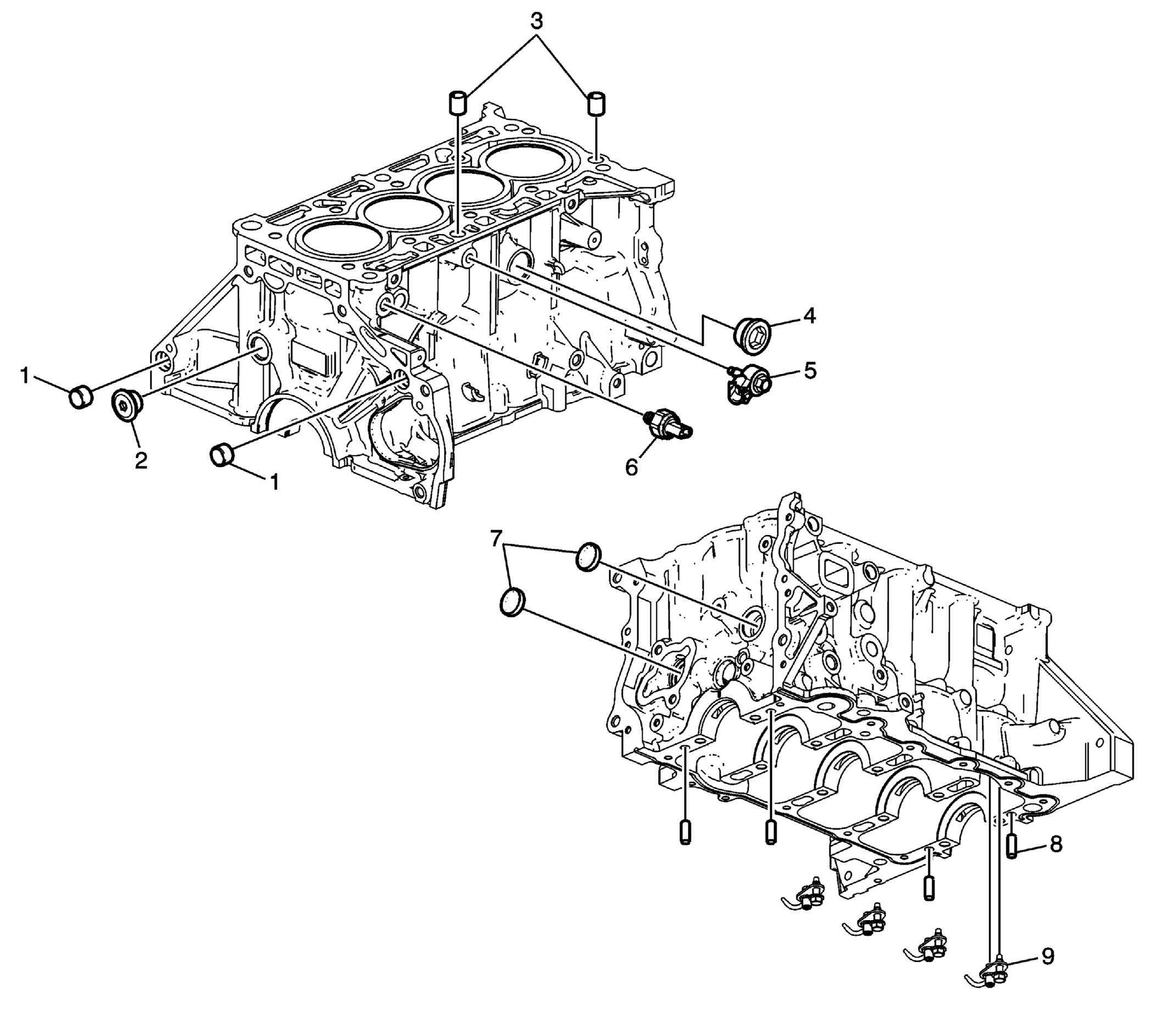

| Callout | Component Name |
|---|---|
| Preliminary Procedure Apply sealant to all plugs prior to installation. Refer to Adhesives, Fluids, Lubricants, and Sealers . |
|
| 1 | Locating Pin - Transmission (Qty: 2) Procedure Ensure Transmission locating pins are properly seated and not damaged. |
| 2 | Engine Block Oil Gallery Plug
CAUTION:
Refer to Component Fastener Tightening Caution . Tighten 65 N.m (48 lb ft) |
| 3 | Locating Pin - Cylinder Head (Qty: 2) |
| 4 | Engine Coolant Heater Hole Plug Tighten 60 N.m (44 lb ft) |
| 5 | Knock Sensor
CAUTION:
Refer to Fastener Caution . Tighten 25 N.m (18 lb ft) |
| 6 | Engine Oil Pressure Sensor Tighten 35 N.m (26 lb ft) |
| 7 | Cylinder Head Core Hole Plug (Qty: 2) |
| 8 | Lower Crankcase Locating Pin (Qty: 4) |
| 9 | Piston Oil Nozzle (Qty: 4) Tighten 10 N.m (89 lb in) |
