Lower Crankcase Assemble

WARNING: This page is about a different car, the 2018 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

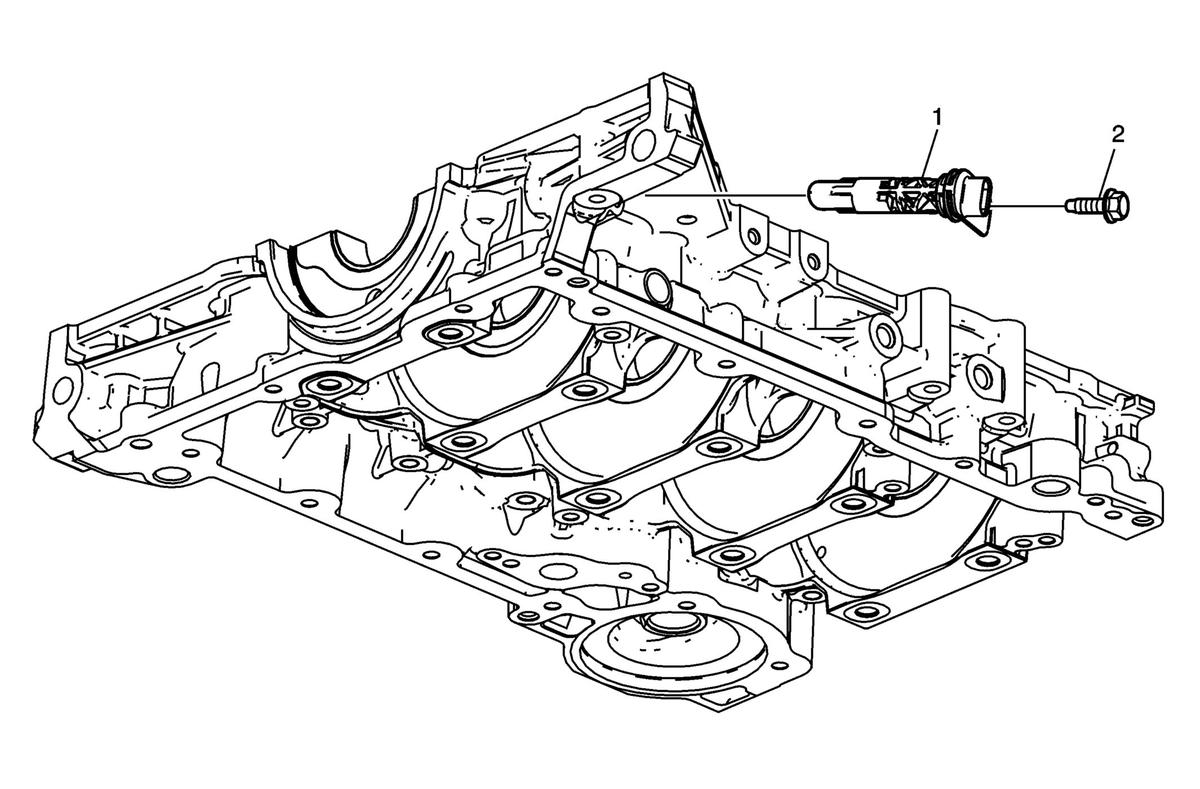

GM3600281
Lower Crankcase Assemble

Callout Component Name
1 Crankshaft Position Sensor
2 Crankshaft Position Sensor Bolt
CAUTION:

Refer to Fastener Caution .


Tighten
10 N.m (89 lb in)
