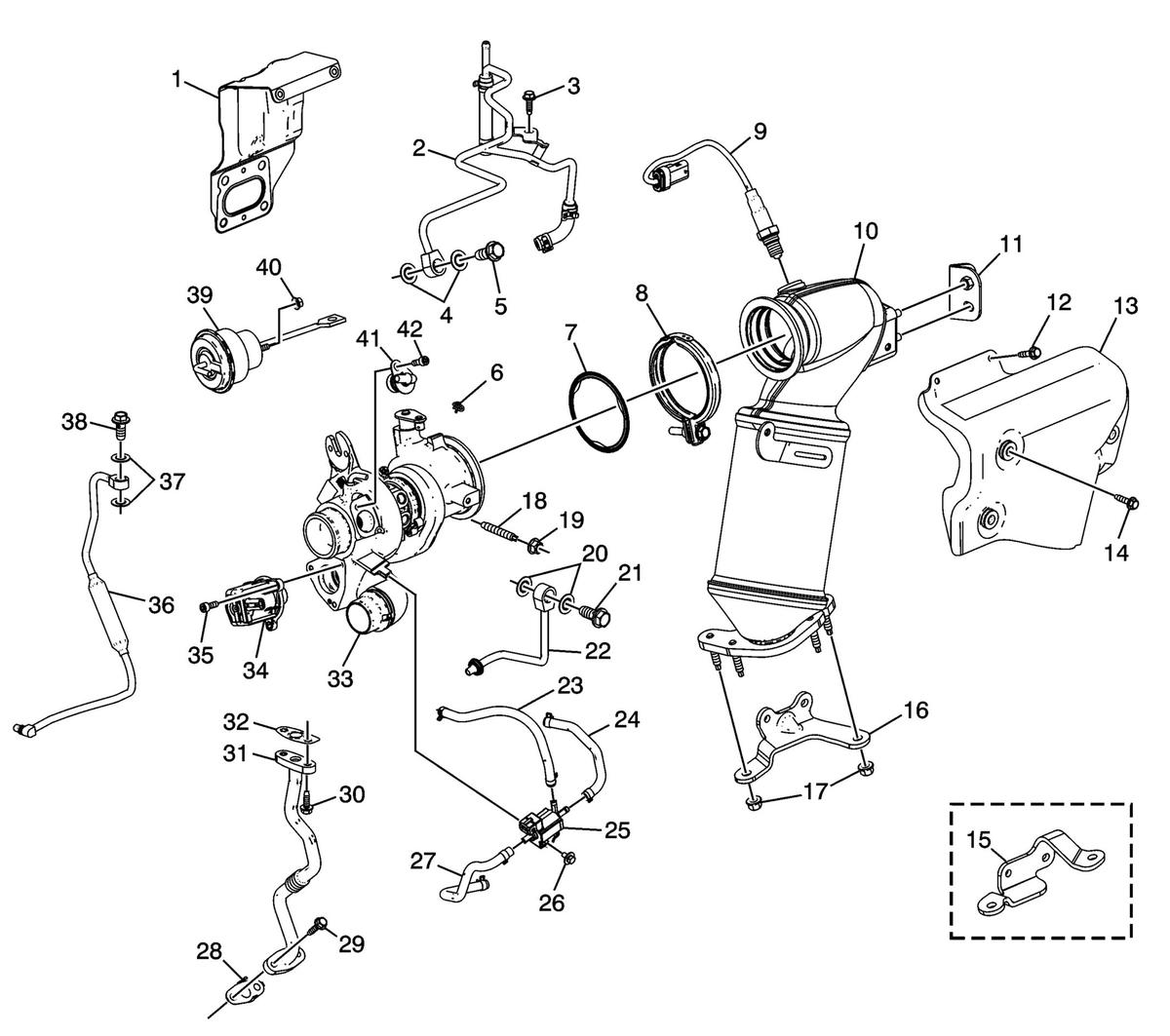

Turbocharger and Components

WARNING: This page is about a different car, the 2018 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

Callout	Component Name
1	Turbocharger Heat Shield
2	Turbocharger Coolant Return Pipe Assembly
3	Turbocharger Coolant Return Pipe Bracket Bolt
4	Turbocharger Coolant Return Pipe Union Gasket (Qty: 2)
5	Turbocharger Coolant Return Pipe Bolt
6	Wastegate Actuator Arm Retaining Clip
7	Catalytic Converter Gasket
8	Exhaust Pipe Clamp
9	Oxygen Sensor
10	Catalytic Converter
11	Catalytic Converter Bracket
12	Catalytic Converter Heat Shield Bolt
13	Catalytic Converter Heat Shield
14	Catalytic Converter Heat Shield Bolt
15	Catalytic Converter Bracket, Some Models
16	Catalytic Converter Bracket
17	Catalytic Converter Bracket Nut (Qty: 2)
18	Turbocharger Stud
19	Turbocharger Nut
20	Turbocharger Coolant Feed Pipe Union Gasket (Qty: 2)
21	Turbocharger Coolant Feed Pipe Bolt
22	Turbocharger Coolant Feed Pipe Assembly
23	Wastegate Actuator to Solenoid Hose
24	Compressor In to Solenoid Hose
25	Charge Air Bypass Valve
26	Charge Air Bypass Valve Bolt/Washer
27	Compressor Out to Solenoid Hose
28	Turbocharger Oil Return Pipe Gasket
29	Turbocharger Oil Return Pipe Bolt - Flange to Block (Qty: 2)
30	Turbocharger Oil Return Pipe Bolt - Flange to Turbocharger (Qty: 2)
31	Turbocharger Oil Return Pipe
32	Turbocharger Oil Return Pipe Gasket
33	Turbocharger
34	Turbocharger Bypass Valve Solenoid
35	Turbocharger Bypass Valve Solenoid Bolt (Qty: 3)
36	Turbocharger Oil Feed Pipe Assembly
37	Turbocharger Oil Feed Pipe Union Gasket (Qty: 2)
38	Turbocharger Oil Feed Pipe Bolt
39	Wastegate Actuator Assembly
40	Wastegate Actuator Nut (Qty: 2)
41	Turbocharger PCV Pipe Fitting
42	Turbocharger PCV Pipe Fitting Bolt
