Cylinder Head and Components
WARNING: This page is about a different car, the 2018 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

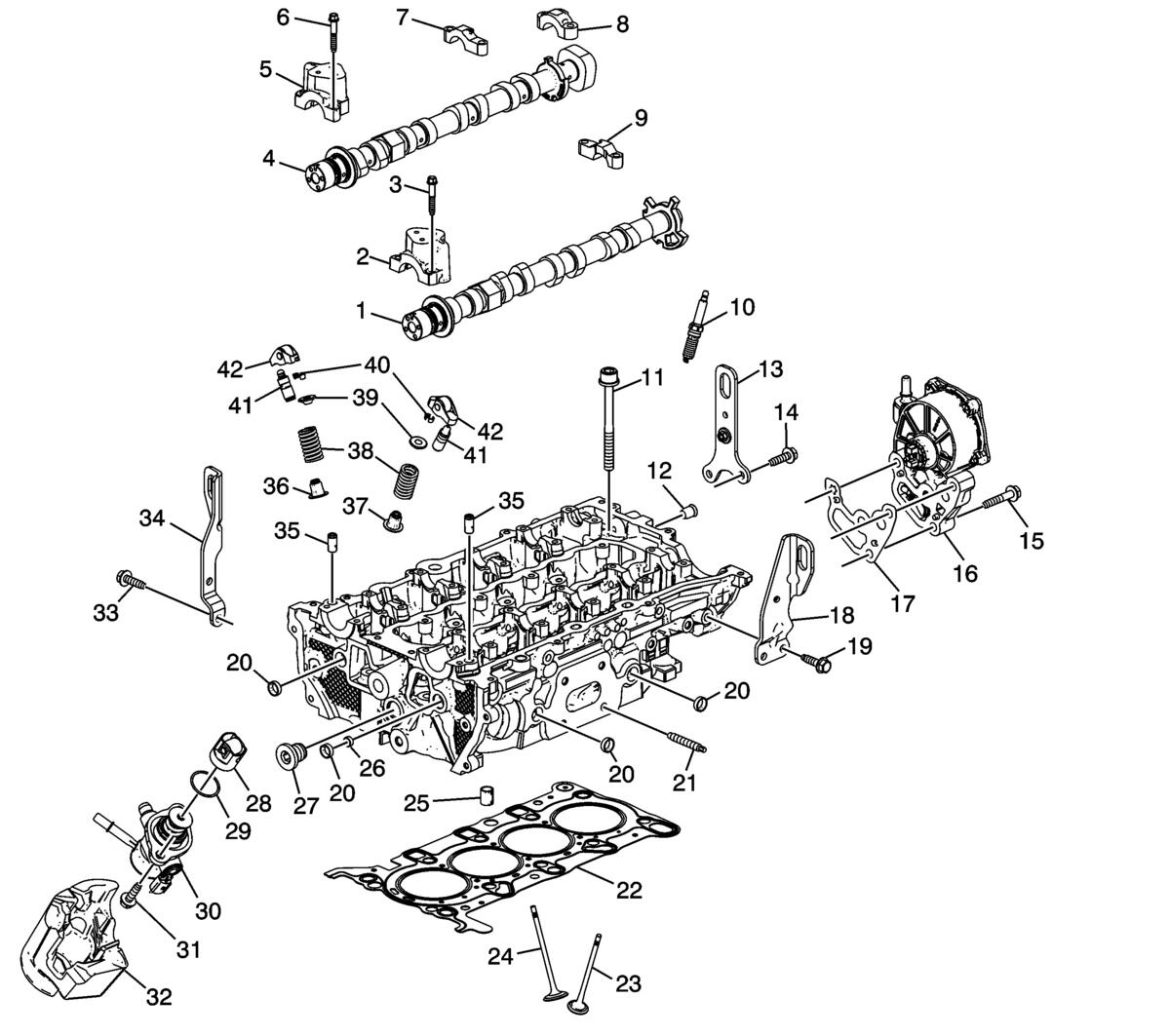

| Callout | Component Name |
|---|---|
| 1 | Exhaust Camshaft Assembly |
| 2 | Camshaft Bearing Front Exhaust Cap |
| 3 | Cap Bolt - Exhaust (Qty: 12) |
| 4 | Intake Camshaft Assembly |
| 5 | Camshaft Bearing Front Intake Cap |
| 6 | Cap Bolt - Intake (Qty: 12) |
| 7 | Camshaft Cap - Intake (Qty: 4) |
| 8 | Camshaft Rear Cap - Intake |
| 9 | Camshaft Cap - Exhaust (Qty: 5) |
| 10 | Spark Plug (Qty: 4) |
| 11 | Cylinder Head Bolt (Qty: 10) |
| 12 | Cylinder Head Plug |
| 13 | Engine Lift Bracket - Rear |
| 14 | Engine Lift Bracket Bolt (Qty: 2) |
| 15 | Vacuum Pump Assembly Bolt (Qty: 3) |
| 16 | Vacuum Pump Assembly |
| 17 | Vacuum Pump Gasket |
| 18 | Engine Lift Bracket - Rear |
| 19 | Engine Lift Bracket Bolt (Qty: 2) |
| 20 | Cylinder Head Oil Gallery Plug (Qty: 4) |
| 21 | Double End Stud - Cylinder Head to Turbocharger (Qty: 4) |
| 22 | Cylinder Head Gasket |
| 23 | Exhaust Valve (Qty: 8) |
| 24 | Intake Valve (Qty: 8) |
| 25 | Cylinder Head Locating Pin |
| 26 | Cylinder Head Oil Restrictor Plug |
| 27 | Cylinder Head Plug with Washer |
| 28 | Valve Lifter Follower |
| 29 | Fuel Pump O-ring |
| 30 | Fuel Pump Assembly |
| 31 | Fuel Pump Assembly Bolt (Qty: 2) |
| 32 | Fuel Pump Insulator |
| 33 | Engine Lift Bracket Bolt (Qty: 2) |
| 34 | Engine Lift Bracket - Front |
| 35 | Engine Oil Manifold Check Valve (Qty: 2) |
| 36 | Valve Stem Oil Seal - Intake (Qty: 8) |
| 37 | Valve Stem Oil Seal - Exhaust (Qty: 8) |
| 38 | Valve Springs (Qty: 16) |
| 39 | Valve Spring Retainer (Qty: 16) |
| 40 | Valve Stem Key - Intake, Exhaust (Qty: 32) |
| 41 | Hydraulic Valve Lash Adjuster (Qty: 16) |
| 42 | Hydraulic Valve Lash Adjuster Arm (Qty: 16) |
