Radiator Outlet Hose Replacement (2H0)

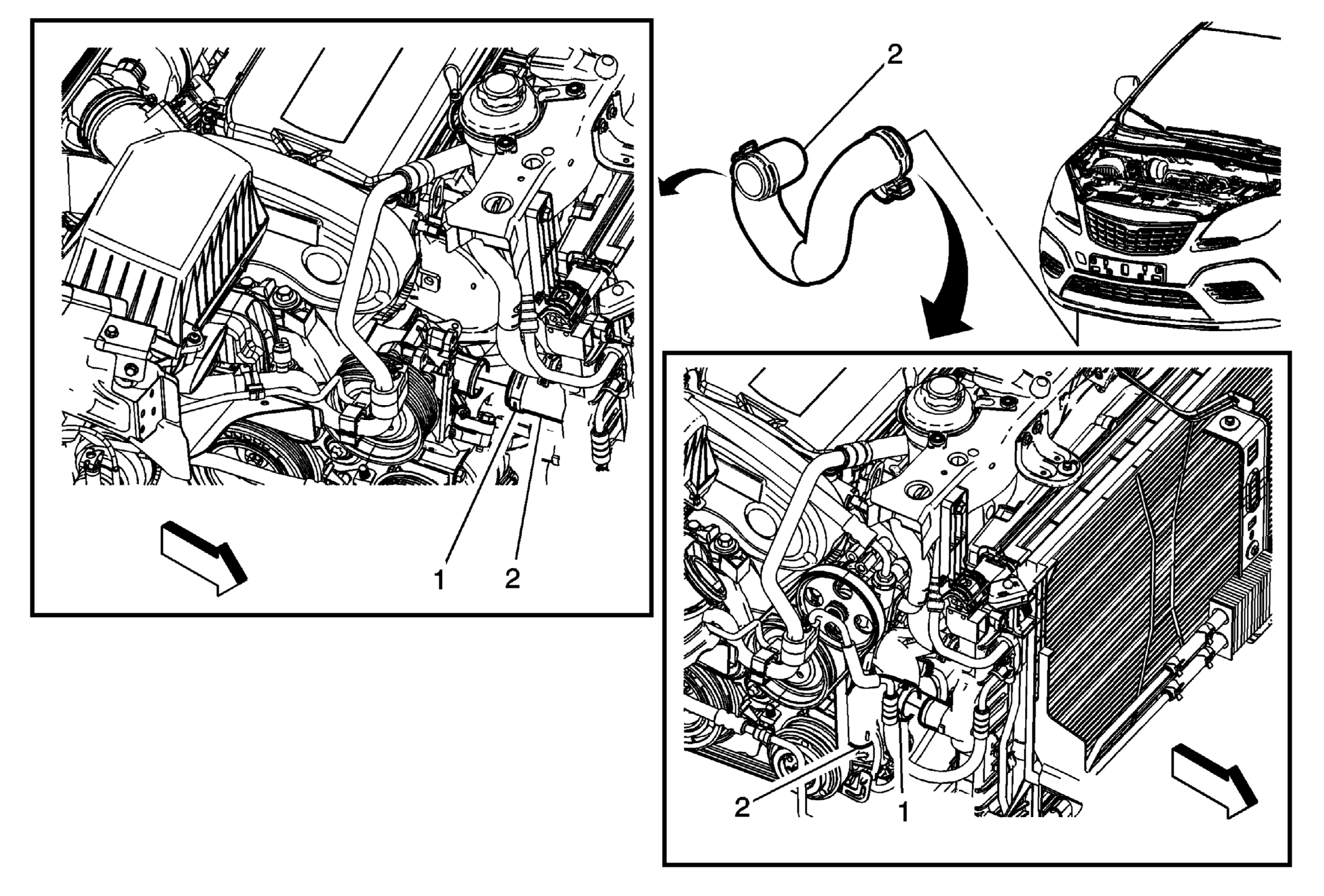

GM2809489
Callout Component Name
Preliminary Procedures
Drain the cooling system. Refer to Cooling System Draining and Filling .
1 Radiator Outlet Hose Clamp (Qty: 2)
Special Tools
BO-38185  Hose Clamp Pliers.
For equivalent regional tools, refer to Special Tools .
2 Radiator Outlet Hose
