Radiator Air Lower Baffle and Deflector Replacement (LE2)

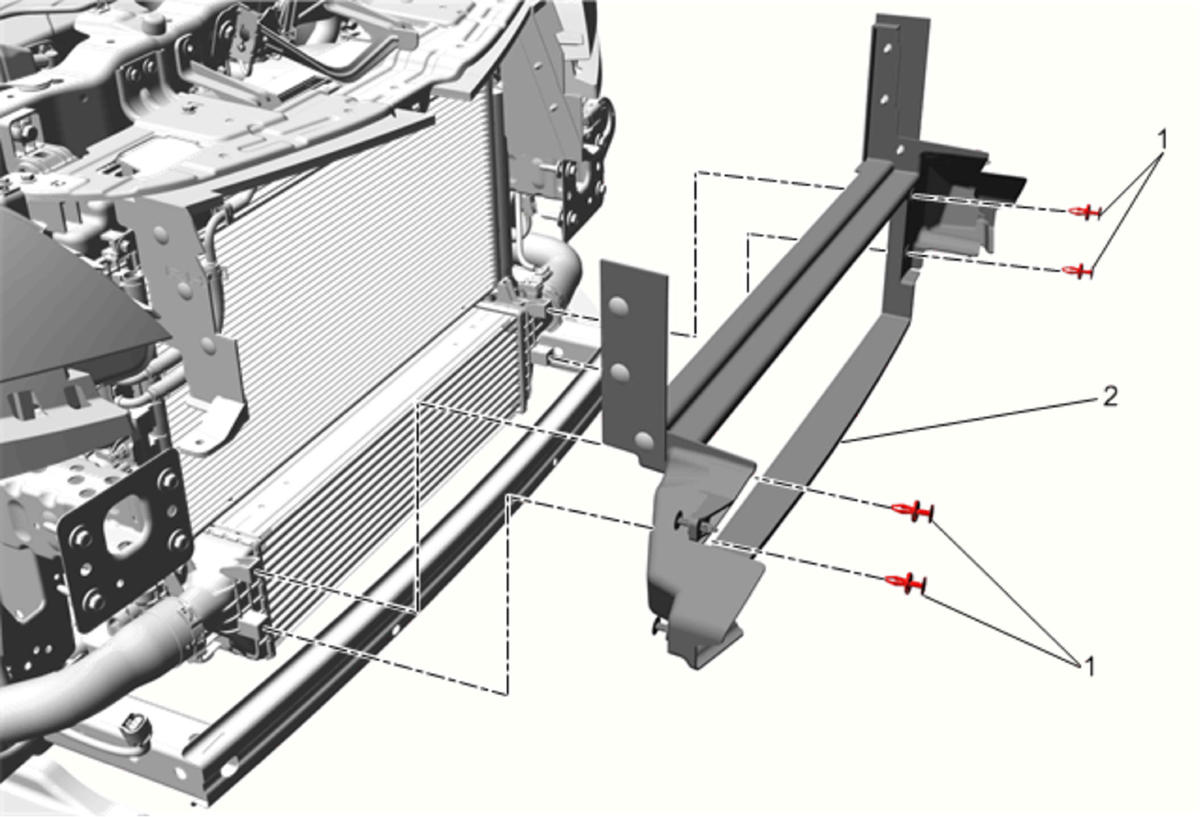

Callout
Component Name
Preliminary Procedures
Front Bumper Fascia Replacement (Chevrolet)
Front Bumper Fascia Replacement (Buick)
Front Bumper Lower Impact Bar Replacement (Chevrolet)
1
Radiator Air Baffle Retainer [4x]
2
Radiator Air Lower Baffle
