Engine Coolant Air Bleed Hose Replacement (Turbocharger Coolant Return Pipe to Water Outlet - LE2)

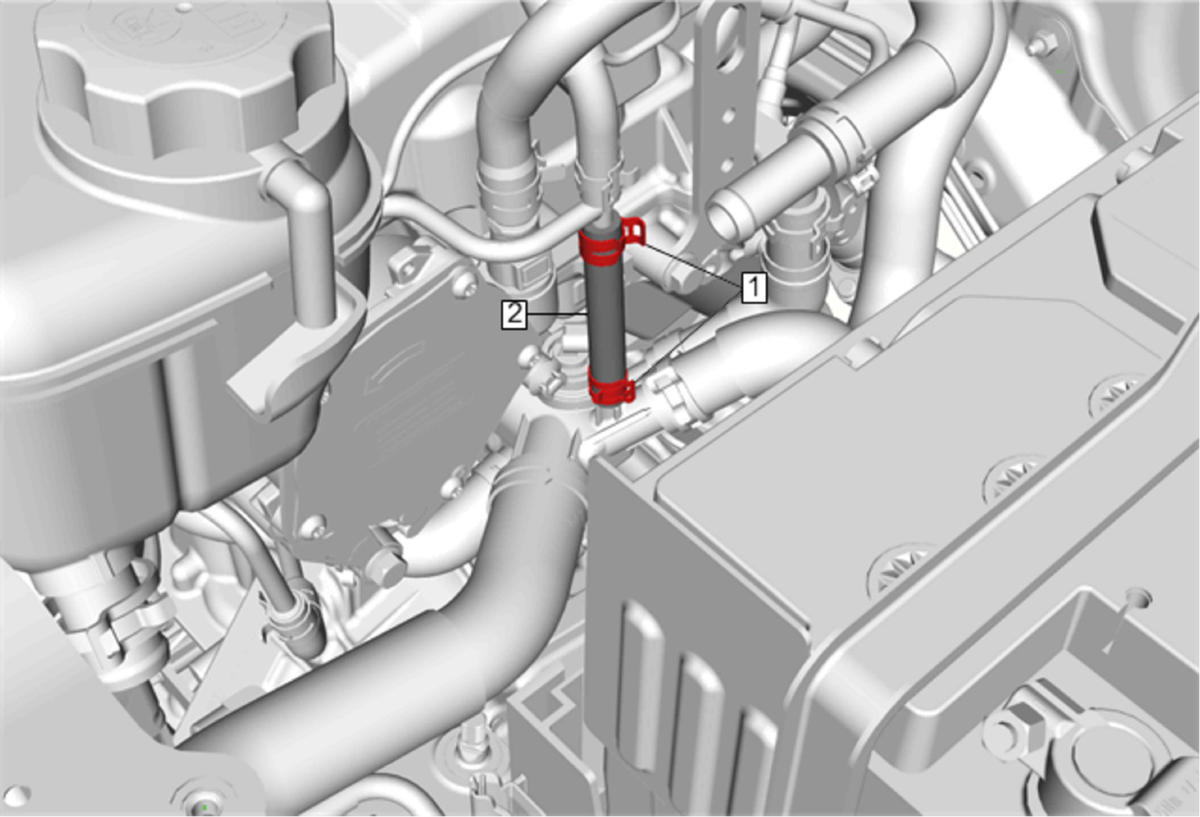

GM4114880
Callout Component Name

Preliminary Procedures

  1. Cooling System Draining and Filling
  2. Radiator Surge Tank Replacement (LUV, 2H0) Radiator Surge Tank Replacement (LE2)  - Reposition
1 Engine Coolant Air Bleed Hose Clamp[2x]
Special Tools
BO-38185  Hose Clamp Pliers
2 Engine Coolant Air Bleed Hose
