Steering Wheel Airbag Coil Replacement (Chevrolet, Without BTM)

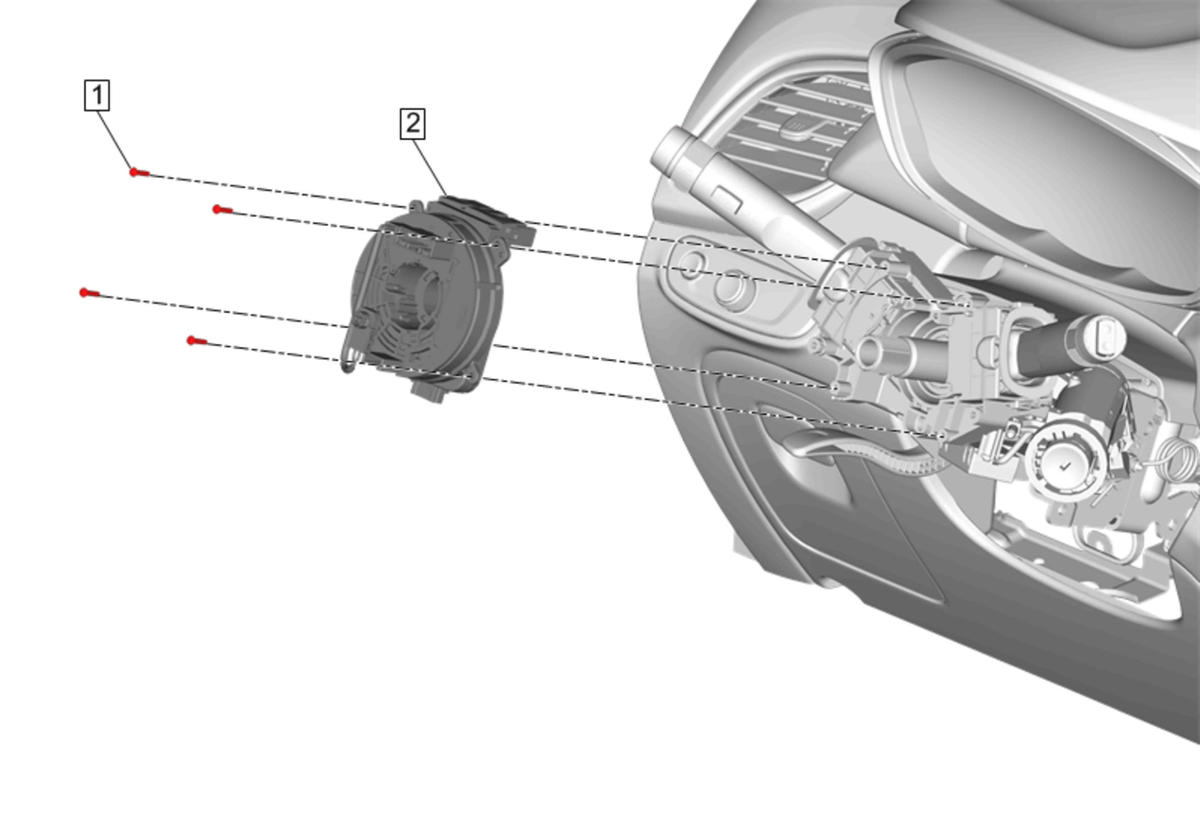

GM4473416

Callout

Component Name

Preliminary Procedures

Steering Wheel Replacement (Chevrolet)
Reposition the steering column upper trim cover as necessary. Steering Column Upper Trim Cover Replacement (Chevrolet, Without BTM)
Ignition Lock Cylinder Opening Trim Cover Replacement (Chevrolet, Without BTM)
Steering Column Lower Trim Cover Replacement (Chevrolet, Without BTM)

1

Steering Wheel Airbag Coil Bolt [4x]

CAUTION:

Refer to Fastener Caution .

Tighten
3 N.m (27 lb in)

2

Steering Wheel Airbag Coil

Procedure

Disconnect the electrical connectors.
Transfer components as necessary.
Ensure the steering wheel airbag coil is CENTERED during installation. Airbag Steering Wheel Module Coil Centering
