X50A Fuse Block - Underhood X1
WARNING: This page is about a different car, the 2018 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.
|
|

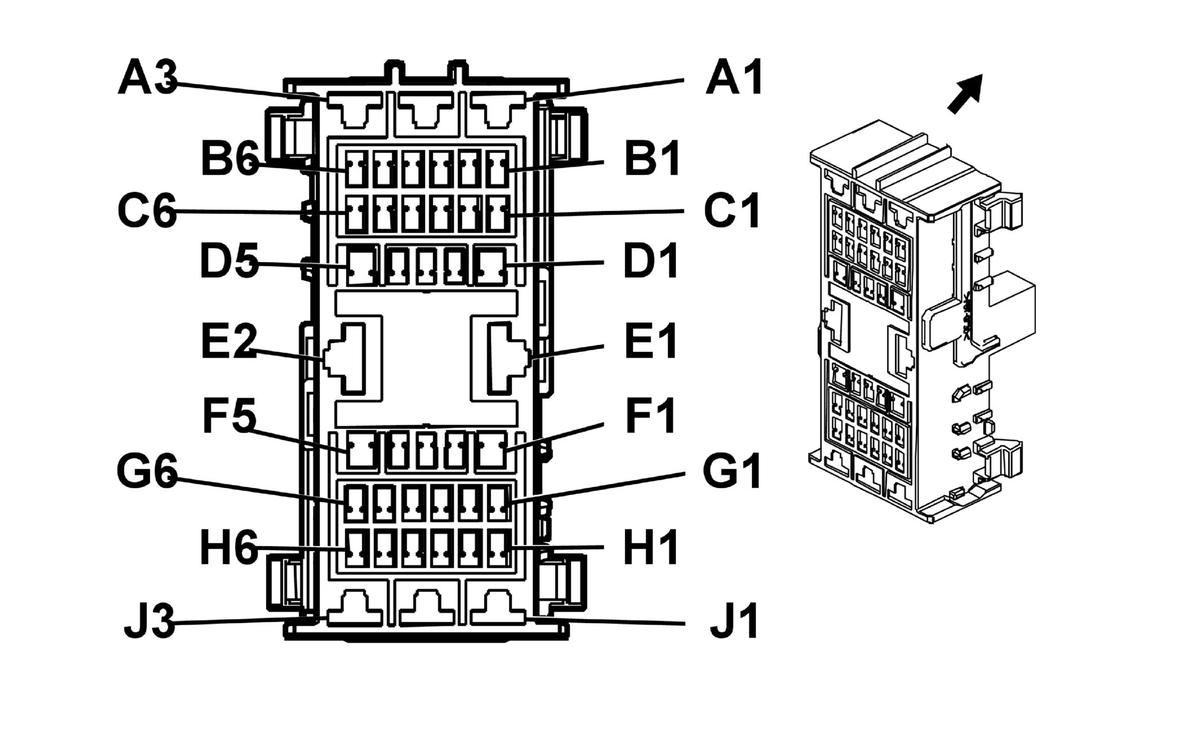

Connector Part Information
- Harness Type: Forward Lamp
- OEM Connector: 13682771
- Service Connector: 13395400
- Description: 42-Way F 150, 280 GT, 630 Metri-Pack, 800 Series (L-GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
13575735 |
J-35616-14 (GN) |
J-38125-553 |
12191812 |
Delphi 19 |
C |
A |
| II |
13575735 |
J-35616-14 (GN) |
J-38125-553 |
12191812 |
Delphi 19 |
E |
C |
| III |
13575753 |
J-35616-4A (PU) |
J-38125-553 |
15304711 |
Delphi 8 |
E |
A |
| IV |
13582226 |
J-35616-42 (RD) |
J-38125-11A |
15304711 |
Delphi 8 |
E |
A |
| V |
19367554 |
J-35616-44 (YE) |
J-38125-558 |
15304711 |
Delphi 8 |
E |
A |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| A1 - A2 |
- |
- |
- |
Not Occupied |
- |
- |
| A3 |
4 |
WH/BU |
409 |
Cooling Fan Motor Control 1 |
IV |
- |
| B1 |
- |
- |
- |
Not Occupied |
- |
- |
| B2 |
0.5 |
BN/VT |
2234 |
Front Fog Lamp Control |
II |
- |
| B3 |
0.5 |
WH |
711 |
Left Headlamp High Beam Control |
II |
- |
| B4 |
0.5 |
WH |
311 |
Right Headlamp High Beam Control |
II |
- |
| B5 |
0.5 |
VT/BU |
5294 |
Powertrain Main Relay Fused Supply 5 |
II |
- |
| B6 |
0.5 |
WH |
2368 |
Cooling Fan Control Signal |
II |
LUV/LUJ/LE2/LFF |
| C1 |
- |
- |
- |
Not Occupied |
- |
- |
| C2 |
0.5 |
GN/VT |
335 |
Low Speed Cooling Fan Relay Control |
II |
- |
| C3 - C5 |
- |
- |
- |
Not Occupied |
- |
- |
| C6 |
0.75 |
BN/GY |
29 |
Horn Control |
I |
- |
| D1 |
- |
- |
- |
Not Occupied |
- |
- |
| D2 |
0.5 |
BU/WH |
1314 |
Left Front Turn Signal Lamp Control |
II |
- |
| D3 |
0.5 |
GY/BN |
309 |
Right Park Lamp Control |
II |
- |
| D4 |
0.5 |
BN/GY |
29 |
Horn Control |
II |
- |
| D5 - E1 |
- |
- |
- |
Not Occupied |
- |
- |
| E2 |
5 |
YE |
5358 |
Cooling Fan Motor Control 3 |
V |
- |
| F1 |
0.5 |
RD/GY |
2140 |
Battery Positive Voltage |
III |
- |
| F2 |
- |
- |
- |
Not Occupied |
- |
- |
| F3 |
0.5 |
YE |
712 |
Left Headlamp Low Beam Control |
II |
- |
| F4 |
0.5 |
BN/YE |
5128 |
Cooling Fan Relay Coil Control |
II |
- |
| F5 - G1 |
- |
- |
- |
Not Occupied |
- |
- |
| G2 |
0.5 |
BU/BN |
7539 |
Right Front DRL Control |
II |
- |
| G3 |
0.5 |
GY/VT |
228 |
Windshield Washer Pump Control |
II |
- |
| G4 |
- |
- |
- |
Not Occupied |
- |
- |
| G5 |
0.5 |
GN/VT |
1315 |
Right Front Turn Signal Lamp Control |
II |
- |
| G6 |
0.5 |
VT/GY |
709 |
Left Park Lamp Control |
II |
- |
| H1 |
0.5 |
GY/BU |
7538 |
Left Front DRL Control |
II |
- |
| H2 |
0.5 |
YE |
312 |
Right Headlamp Low Beam Control |
II |
- |
| H3 |
0.5 |
BU/VT |
392 |
Rear Window Washer Pump Control |
II |
- |
| H4 - H6 |
- |
- |
- |
Not Occupied |
- |
- |
| J1 |
4 |
GY |
532 |
Cooling Fan Motor Control 2 |
IV |
- |
| J2 - J3 |
- |
- |
- |
Not Occupied |
- |
- |
