S86 Vehicle Stability Control Switch (JL4/JL6)
|
|

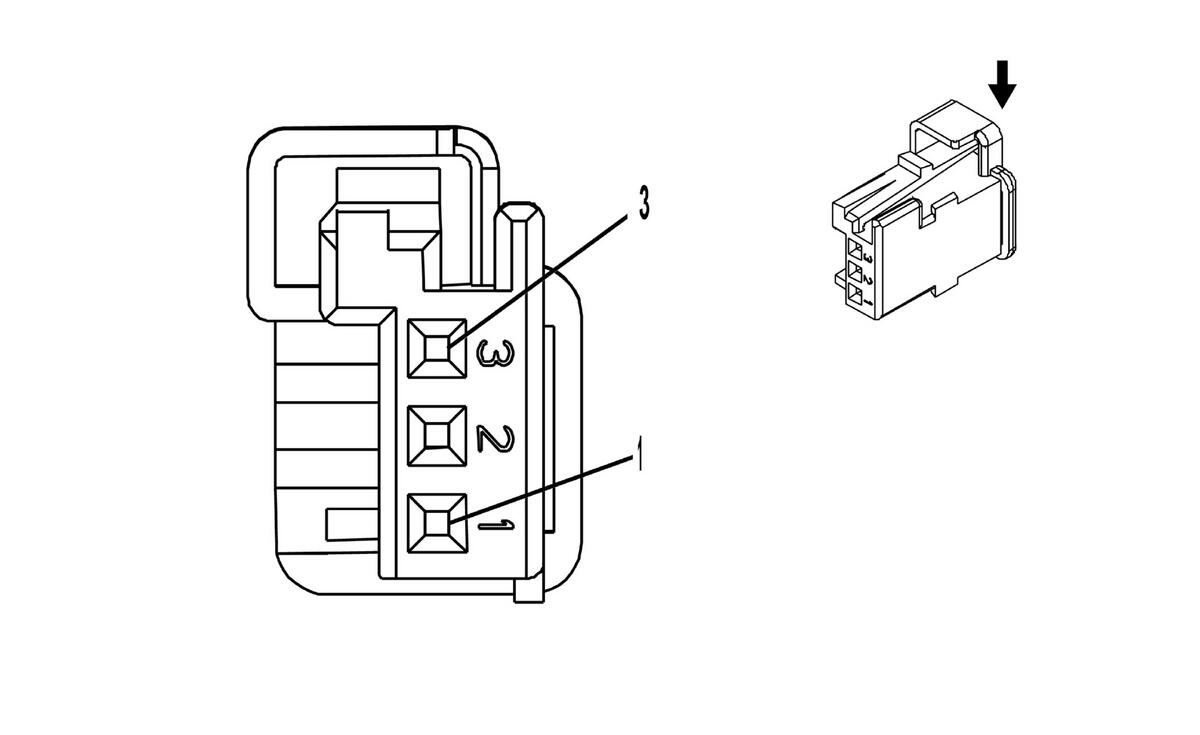

Connector Part Information
- Harness Type: Instrument Panel
- OEM Connector: 953697-2
- Service Connector: 19333316
- Description: 3-Way F 0.64 Micro-Quadlock Series (WH)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-64B (LT BU) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.35 |
BU/VT |
1788 |
Traction Control Switch Signal 1 |
I |
- |
| 2 |
0.5 |
BK |
1450 |
Ground |
I |
- |
| 3 |
0.5 |
YE |
6817 |
LED Backlight Dimming Control |
I |
- |
