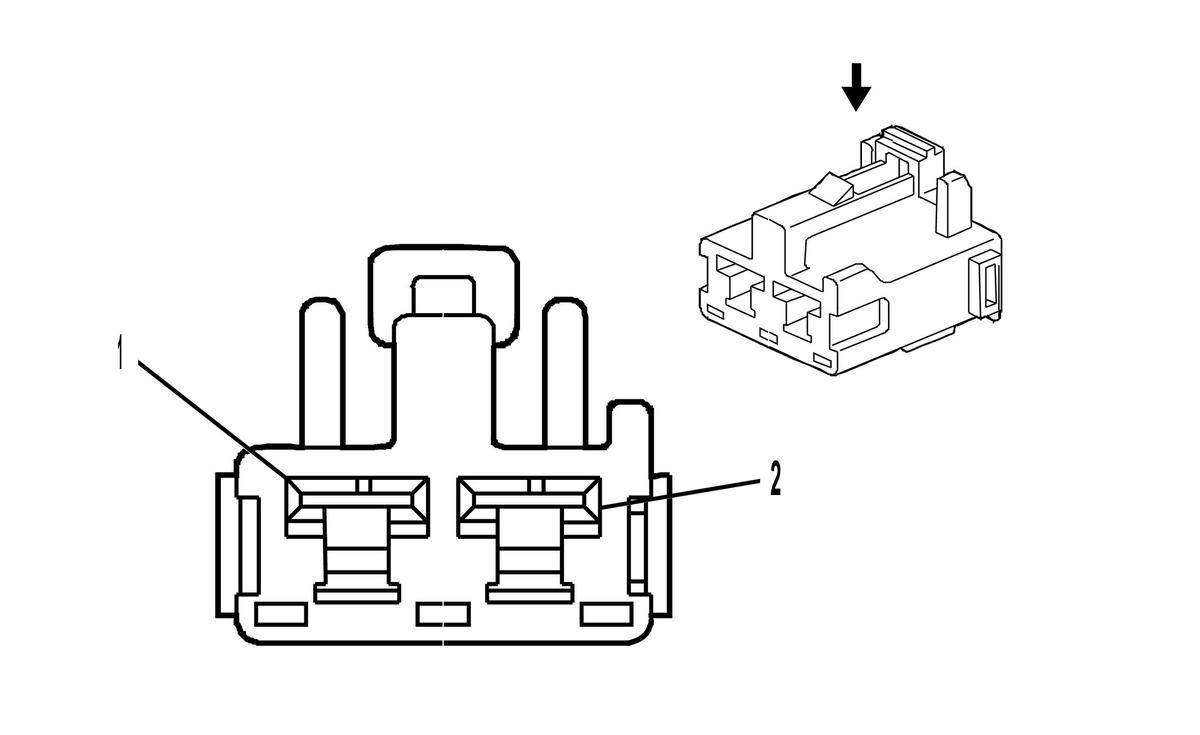

M8 Blower Motor
|
|
Connector Part Information
- Harness Type: Instrument Panel
- OEM Connector: 6098-0325
- Service Connector: 89046848
- Description: 2-Way F TS 187 Series (NA)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-44 (YE) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
3 |
WH/BK |
52 |
High Blower Motor Control |
I |
- |
| 2 |
3 |
VT/BN |
341 |
Run Ignition 3 Voltage |
I |
- |
