M75 Windshield Wiper Motor
|
|

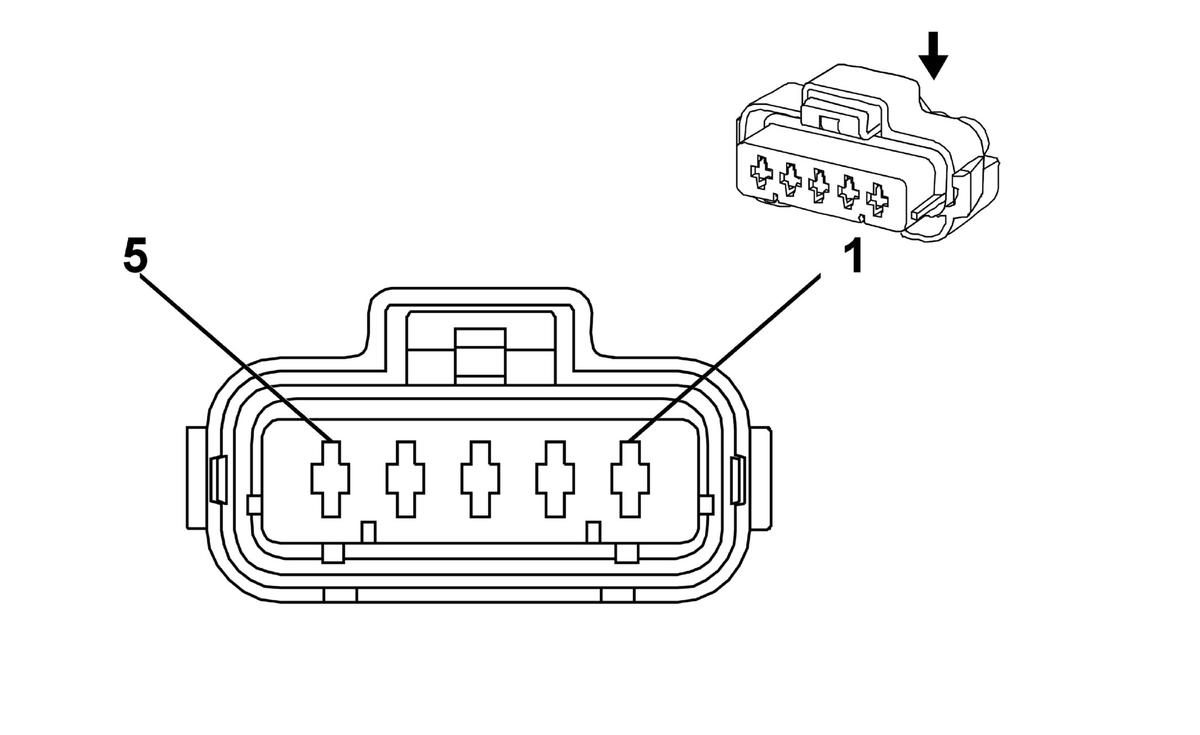

Connector Part Information
- Harness Type: Body
- OEM Connector: 211PC053S4030
- Service Connector: 13395394
- Description: 5-Way F 2.8 Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-35 (VT) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| II |
Not Required |
J-35616-4A (PU) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
2.5 |
BK |
50 |
Ground |
I |
- |
| 2 |
0.35 |
BN/GN |
196 |
Windshield Wiper Motor Park Switch Signal |
II |
- |
| 3 |
- |
- |
- |
Not Occupied |
- |
- |
| 4 |
2.5 |
YE/BN |
95 |
Windshield Wiper Motor Low Speed Control |
I |
- |
| 5 |
2.5 |
WH |
92 |
Windshield Wiper Motor High Speed Control |
I |
- |
