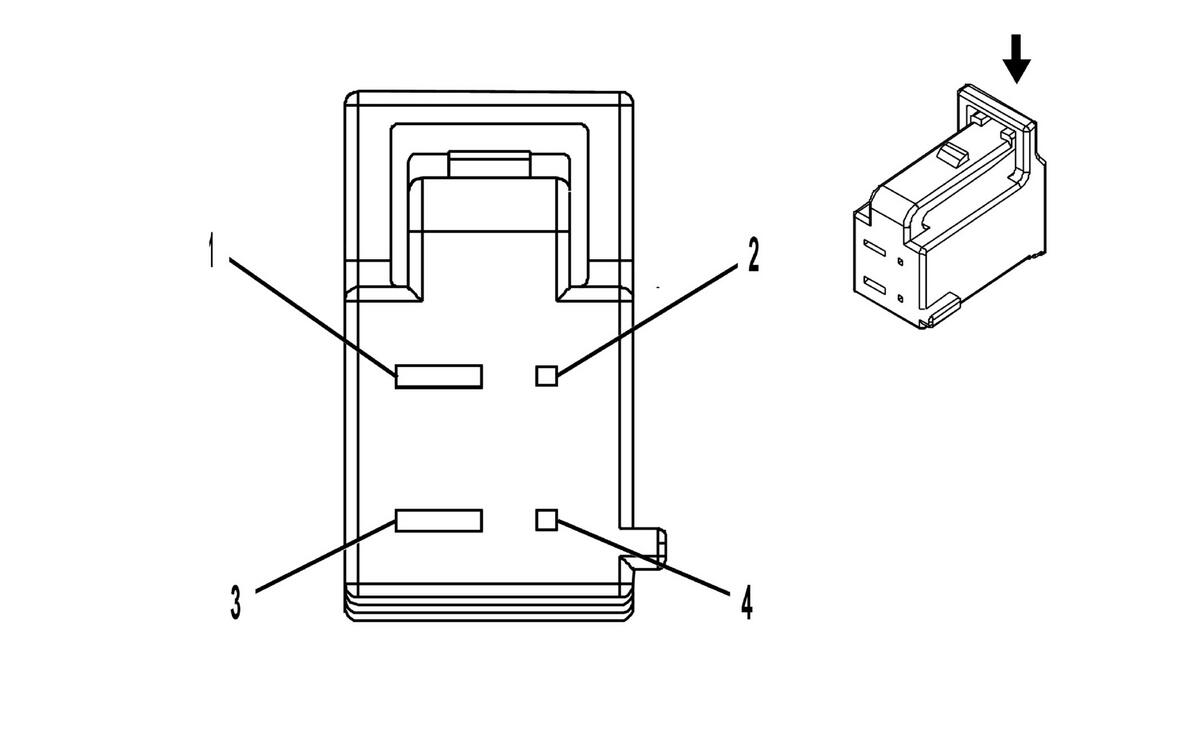

M51D Seat Horizontal Motor - Driver (AG9)
|
|
Connector Part Information
- Harness Type: DRIVER SEAT
- OEM Connector: 6098-2830
- Service Connector: Service by Harness - See Part Catalog
- Description: 4-Way F 0.64, 2.8 Series (BN)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
Not Available |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
GY/GN |
284 |
Driver Power Seat Horizontal Motor Rearward Control |
I |
- |
| 2 |
- |
- |
- |
Not Occupied |
- |
- |
| 3 |
0.5 |
YE/BU |
285 |
Driver Power Seat Horizontal Motor Forward Control |
I |
- |
| 4 |
- |
- |
- |
Not Occupied |
- |
- |
