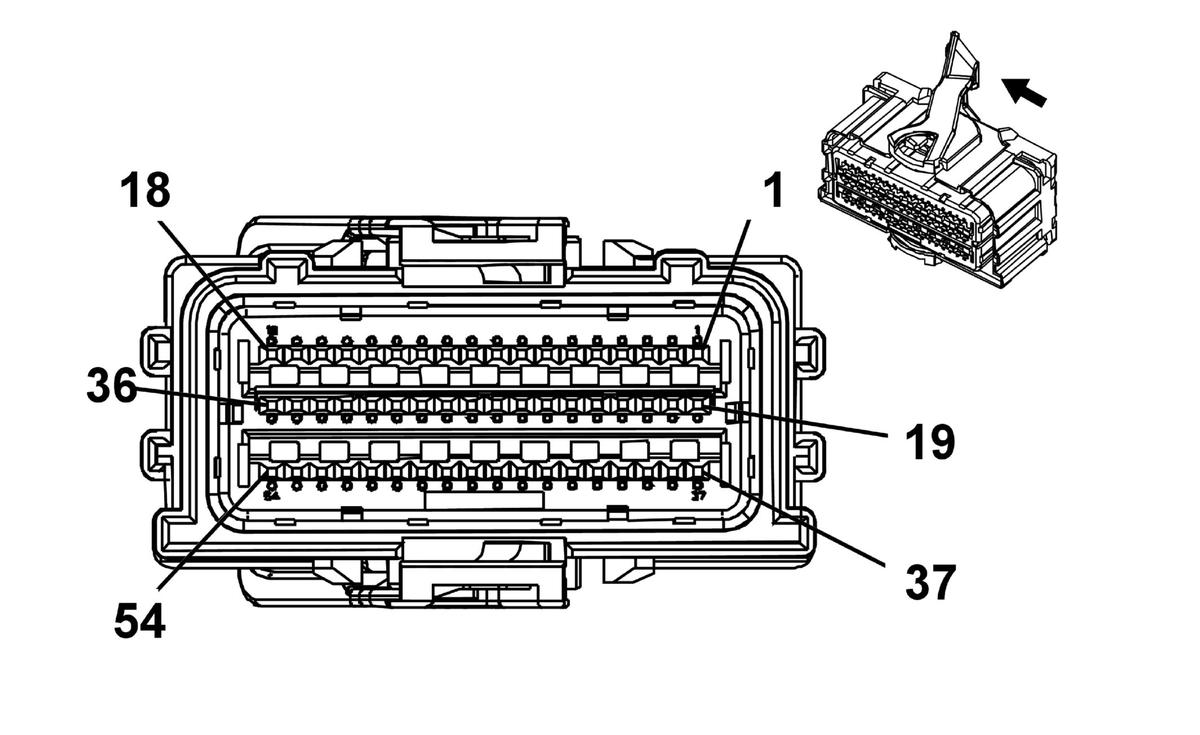

K36 Inflatable Restraint Sensing and Diagnostic Module X2 (ADL)

Connector Part Information

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool	Service Terminal	Tray Name	Core Crimp	Insulation Crimp
I	19328872	J-35616-64B (LT BU)	J-38125-11A	Not Available	Not Available	Not Available	Not Available

Pin	Size	Color	Circuit	Function	Terminal Type ID	Option
1 - 36	-	-	-	Not Occupied	-	-
37	0.35	OG/WH	3477	Driver Seat Belt Retractor Pretensioner High Control	I	-
38	0.35	GY/OG	3478	Driver Seat Belt Retractor Pretensioner Low Control	I	-
39	0.35	WH/OG	3476	Passenger Seat Belt Retractor Pretensioner Low Control	I	-
40	0.35	OG/GN	3475	Passenger Seat Belt Retractor Pretensioner High Control	I	-
41	0.35	OG/BN	238	Driver Seat Belt Switch Signal	I	-
42	-	-	-	Not Occupied	-	-
43	0.35	BK/OG	1363	Driver Seat Belt Switch Low Reference	I	-
44	0.35	BK/OG	1361	Passenger Seat Belt Switch Low Reference	I	-
45	0.35	OG/VT	1362	Passenger Seat Belt Switch Signal	I	-
46	-	-	-	Not Occupied	-	-
47	0.35	OG/BN	7571	Passenger Seat Belt Reminder Signal	I	-
48 - 54	-	-	-	Not Occupied	-	-
