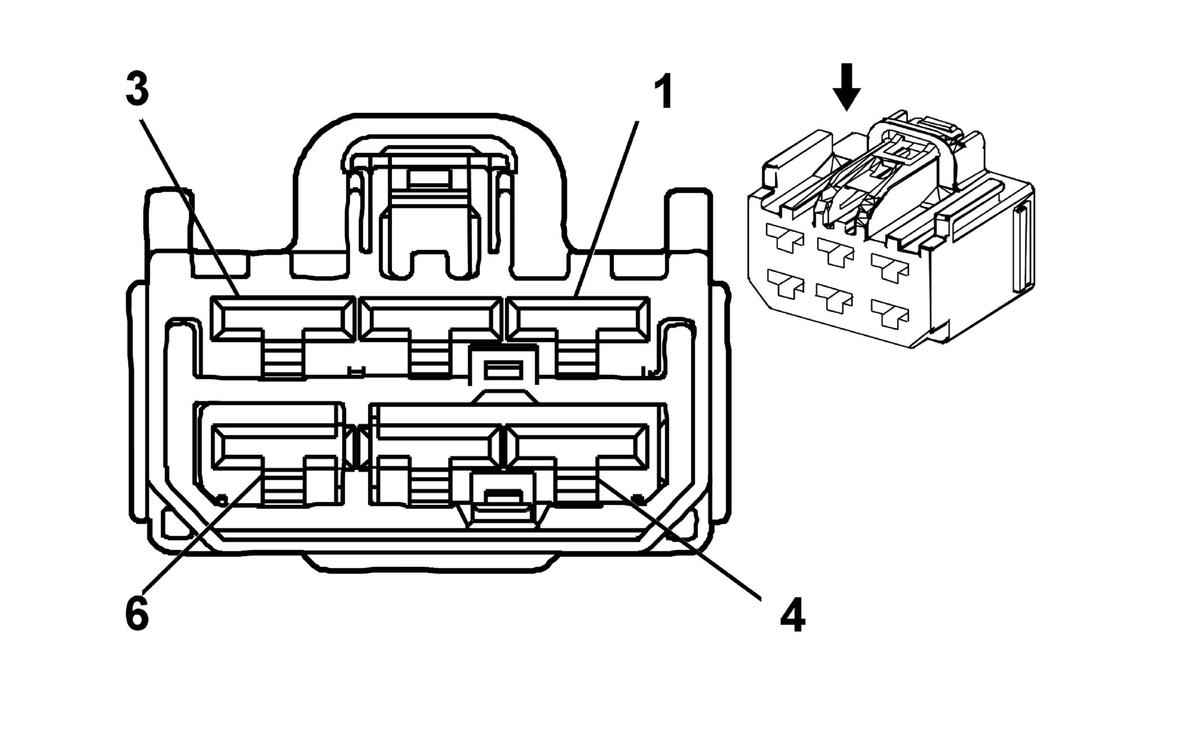

K33 HVAC Control Module X1
|
|
Connector Part Information
- Harness Type: Instrument Panel
- OEM Connector: 7283-3740-40
- Service Connector: 19153168
- Description: 6-Way F YESC Kaizen Series (L-GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-42 (RD) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
4 |
BK |
1650 |
Ground |
I |
- |
| 2 |
3 |
BU/YE |
72 |
Medium 2 Blower Motor Control |
I |
- |
| 3 |
2.5 |
YE/BN |
63 |
Medium Blower Motor Control 1 |
I |
- |
| 4 |
3 |
WH/BK |
52 |
High Blower Motor Control |
I |
- |
| 5 |
0.5 |
GN |
71 |
Off Blower Motor Control |
I |
- |
| 6 |
2 |
YE |
60 |
Low Blower Motor Control |
I |
- |
