Instrument Cluster Replacement (Chevrolet)

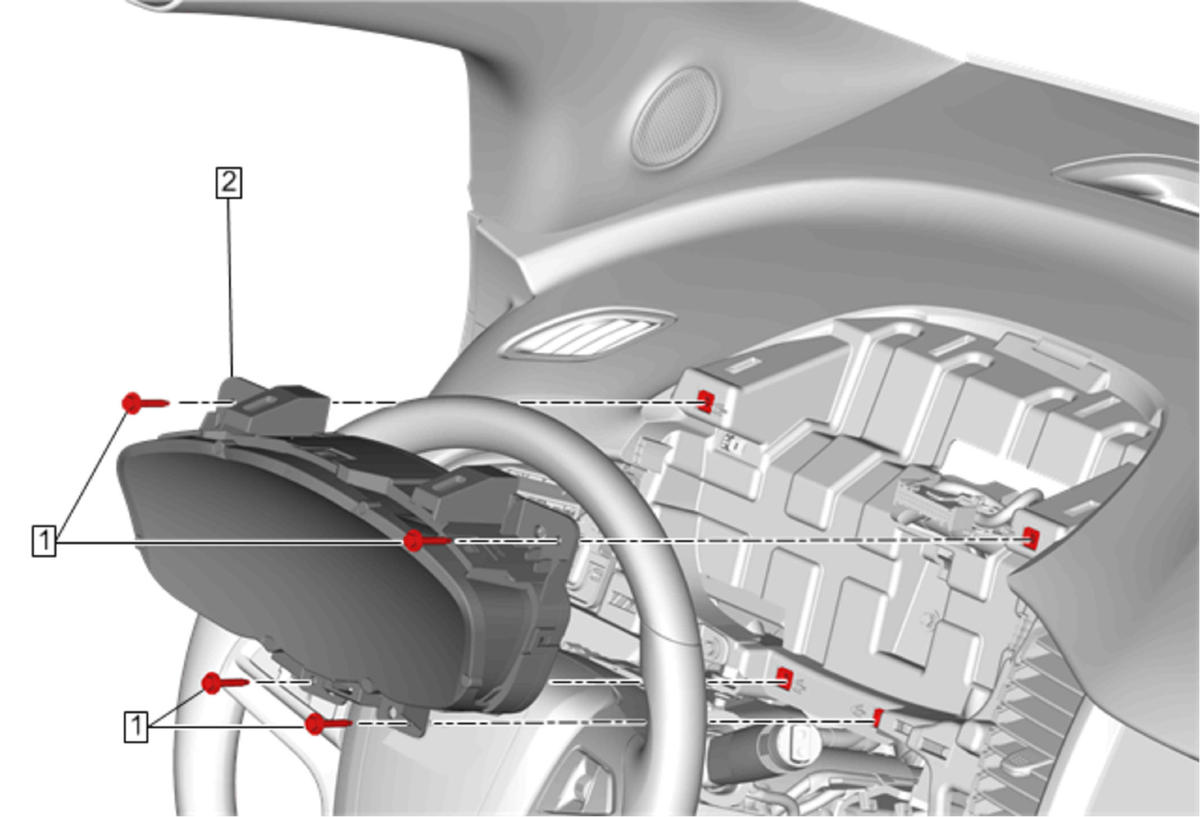

| Callout | Component Name |
|---|---|
| Preliminary Procedure Instrument Panel Instrument Cluster Hood Replacement (Chevrolet) |
|
| 1 | Instrument Cluster Bolt[4x]
CAUTION:
Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in) |
| 2 | Instrument Cluster Procedure
|
