Instrument Cluster Replacement (Buick)

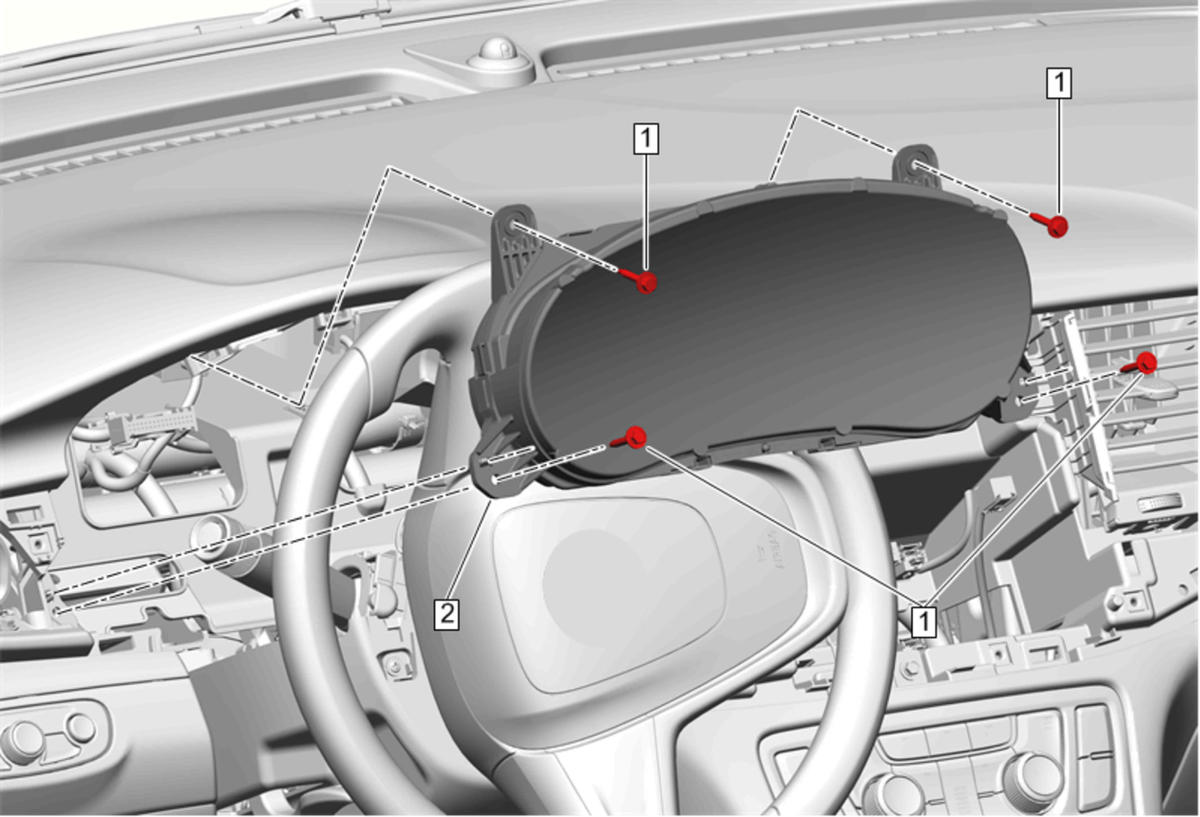

GM4373864

Callout

Component Name

Preliminary Procedure

Instrument Panel Outer Air Outlet Replacement - Left Side (Buick)Instrument Panel Outer Air Outlet Replacement - Left Side (Chevrolet)
Steering Column Upper Trim Cover Replacement (Chevrolet, With BTM)Steering Column Upper Trim Cover Replacement (Chevrolet, Without BTM)Steering Column Upper Trim Cover Replacement (Buick, With BTM)

1

Instrument Cluster Bolt[4x]

CAUTION:

Refer to Fastener Caution .

Tighten
2.5 N.m (22 lb in)

2

Instrument Cluster

Procedure

Disconnect the electrical connector.
Perform the necessary programming and setup procedure:Control Module References
