Instrument Panel Trim Plate Applique Replacement - Left Side (Chevrolet)

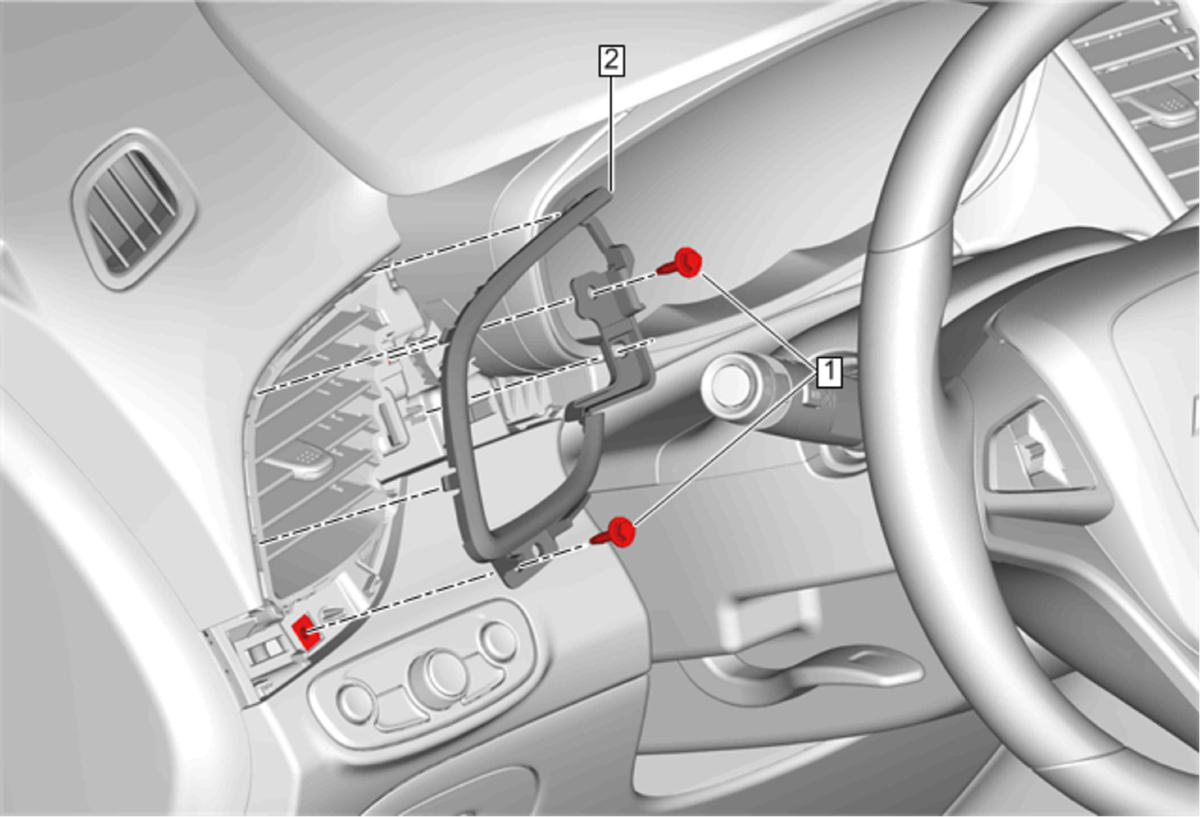

| Callout | Component Name |
|---|---|
|
Preliminary Procedure |
|
| 1 | Instrument Panel Trim Plate Applique Bolt [2x]
CAUTION:
Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in) |
| 2 | Instrument Panel Trim Plate Applique - Left Side Procedure Release the retaining tabs. |
