Instrument Panel Center Trim Plate Applique Replacement (Buick)

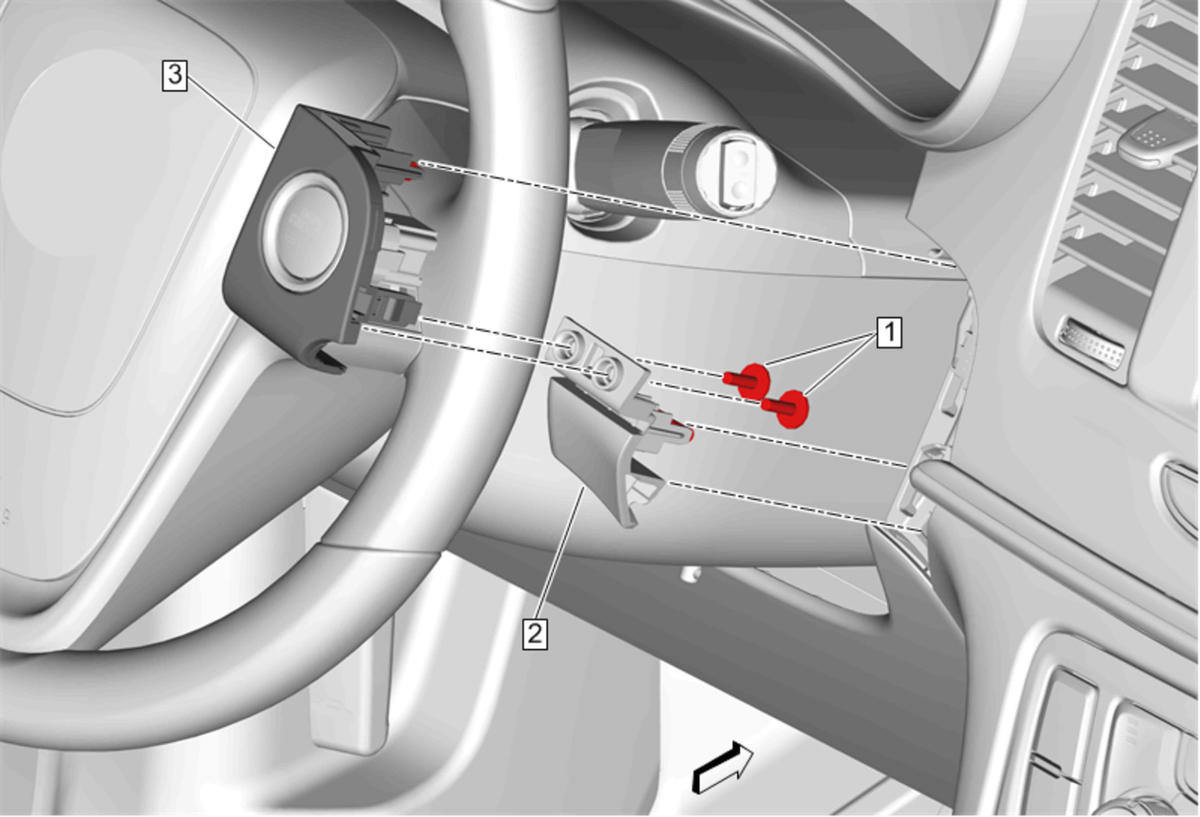

Callout	Component Name
1	Instrument Panel Accessory Trim Center Plate Bolt [2x] CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Instrument Panel Lower Center Trim Plate Applique
3	Instrument Panel Center Trim Plate Applique Procedure Use a flat bladed plastic trim tool. Disconnect the electrical connector.

Callout

Component Name

Instrument Panel Accessory Trim Center Plate Bolt [2x]

CAUTION:

Tighten
2.5 N.m (22 lb in)

Instrument Panel Lower Center Trim Plate Applique

Instrument Panel Center Trim Plate Applique

Procedure
