Rear Turn Signal Lamp Bulb Replacement (Buick)

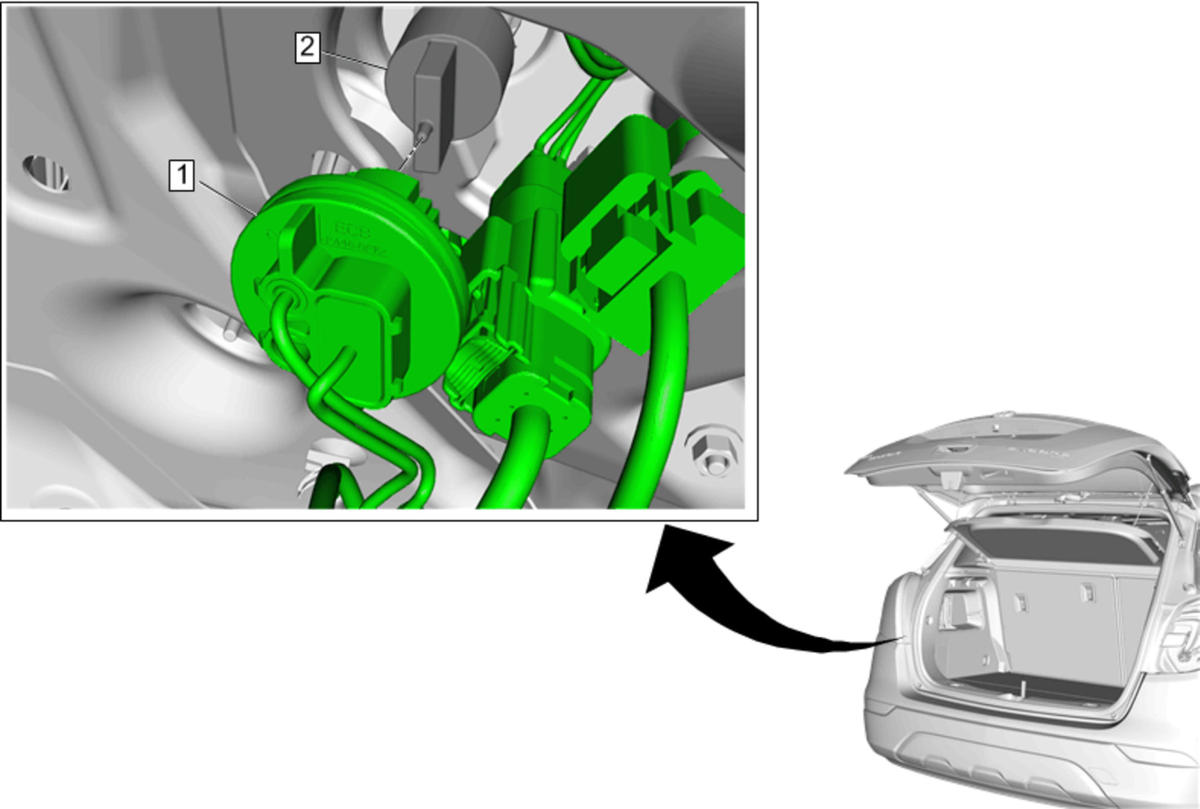

Callout	Component Name
Preliminary Procedures Quarter Stowage Pocket Door Replacement (Left Side)Quarter Stowage Pocket Door Replacement (Right Side) Disconnect the electrical connector as needed.
1	Rear Turn Signal Lamp Socket Procedure Rotate the bulb socket a quarter turn counterclockwise and remove.
2	Rear Turn Signal Lamp Bulb Procedure Pull the bulb straight from the lamp socket.

Callout

Component Name

Preliminary Procedures

Rear Turn Signal Lamp Socket
Procedure
Rotate the bulb socket a quarter turn counterclockwise and remove.

Rear Turn Signal Lamp Bulb
Procedure
Pull the bulb straight from the lamp socket.
