Rear Combination Lamp Module Replacement (Buick with UGE)

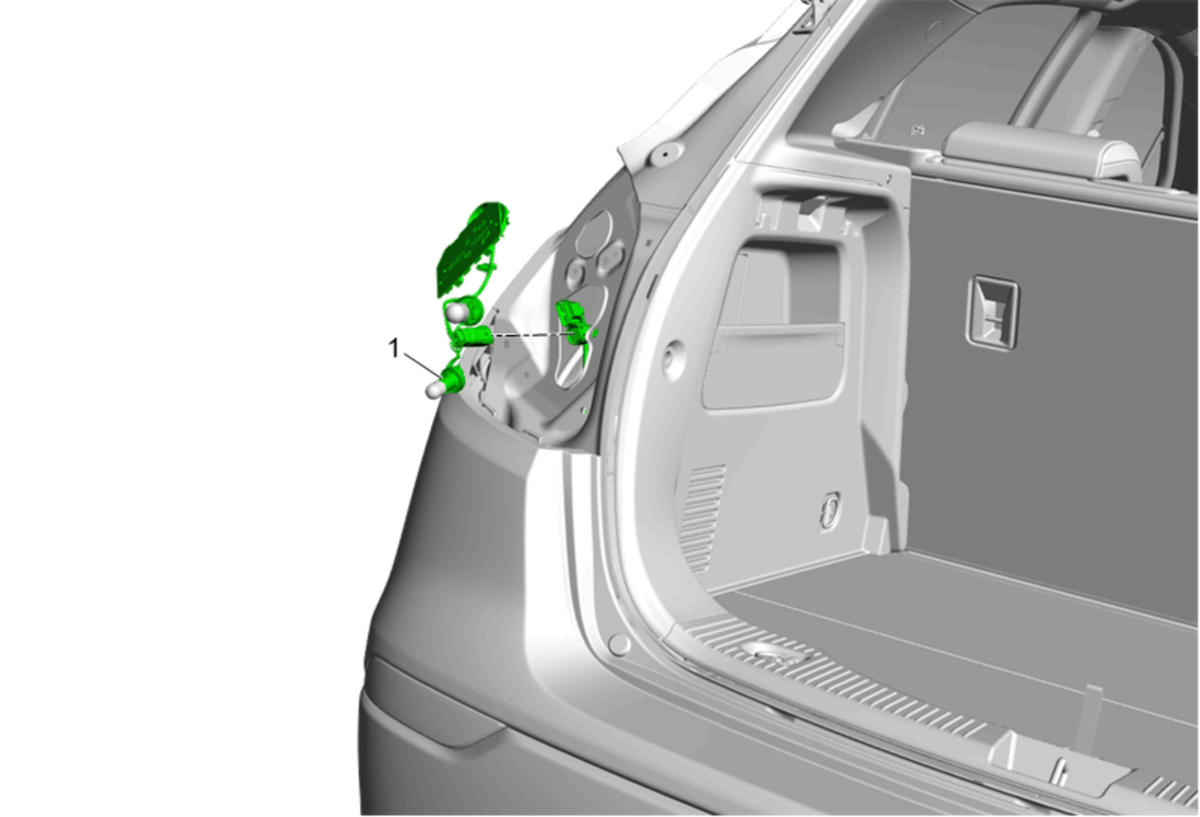

GM4527605
Callout Component Name
Preliminary Procedure
Rear Body Structure Stop Lamp Replacement (Buick with UGE)
1 Rear Combination Lamp Module

Procedure

  1. Pull the rear body structure stop lamp module rearward to remove.
  2. Disconnect the electrical connector.
  3. Transfer components as necessary.
