Headlamp Switch Replacement

GM4426967
Callout Component Name
Preliminary Procedure
Instrument Panel Knee Bolster Replacement (Buick)Instrument Panel Knee Bolster Replacement (Chevrolet)

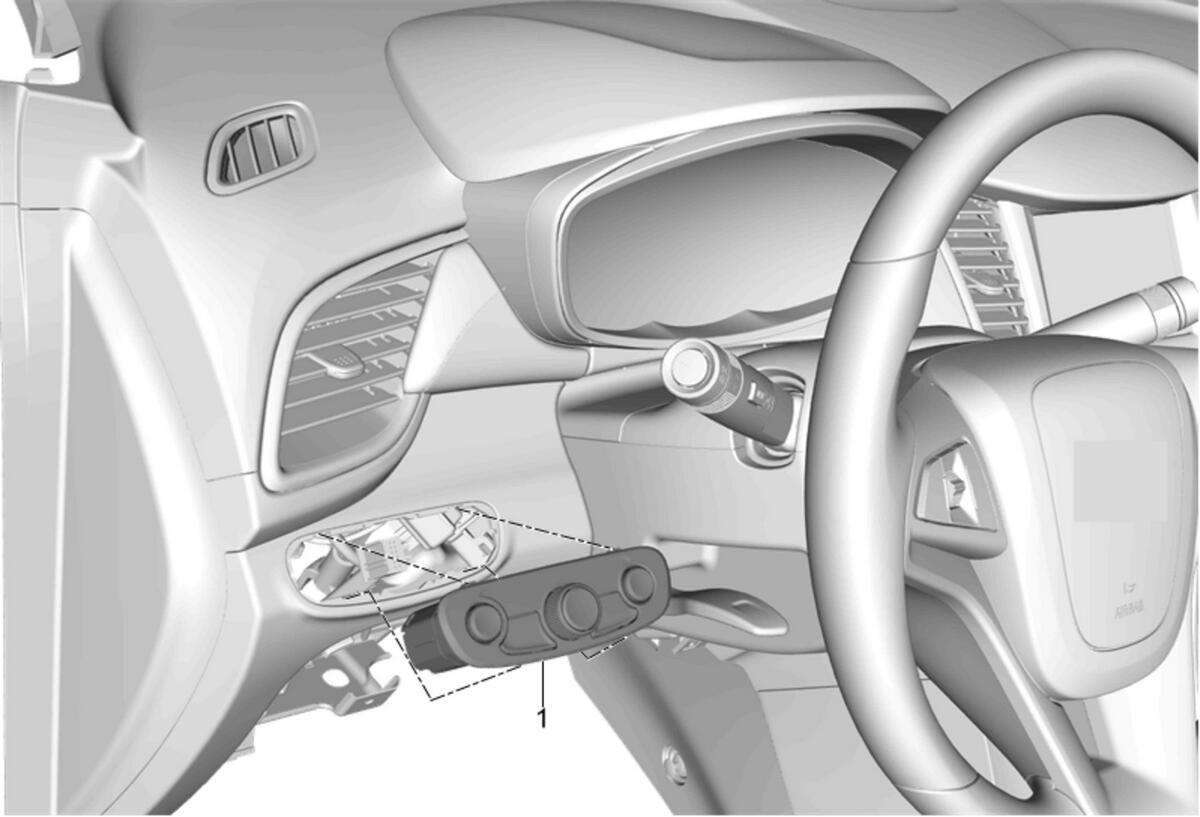

1 Headlamp Switch

Procedure

  1. Depress the tabs on the lamp switch to remove.
  2. Disconnect the electrical connector.
