Front Fog Lamp Bulb Replacement (Chevrolet)

Callout	Component Name
Preliminary Procedure Front Wheelhouse Liner Replacement (Chevrolet)

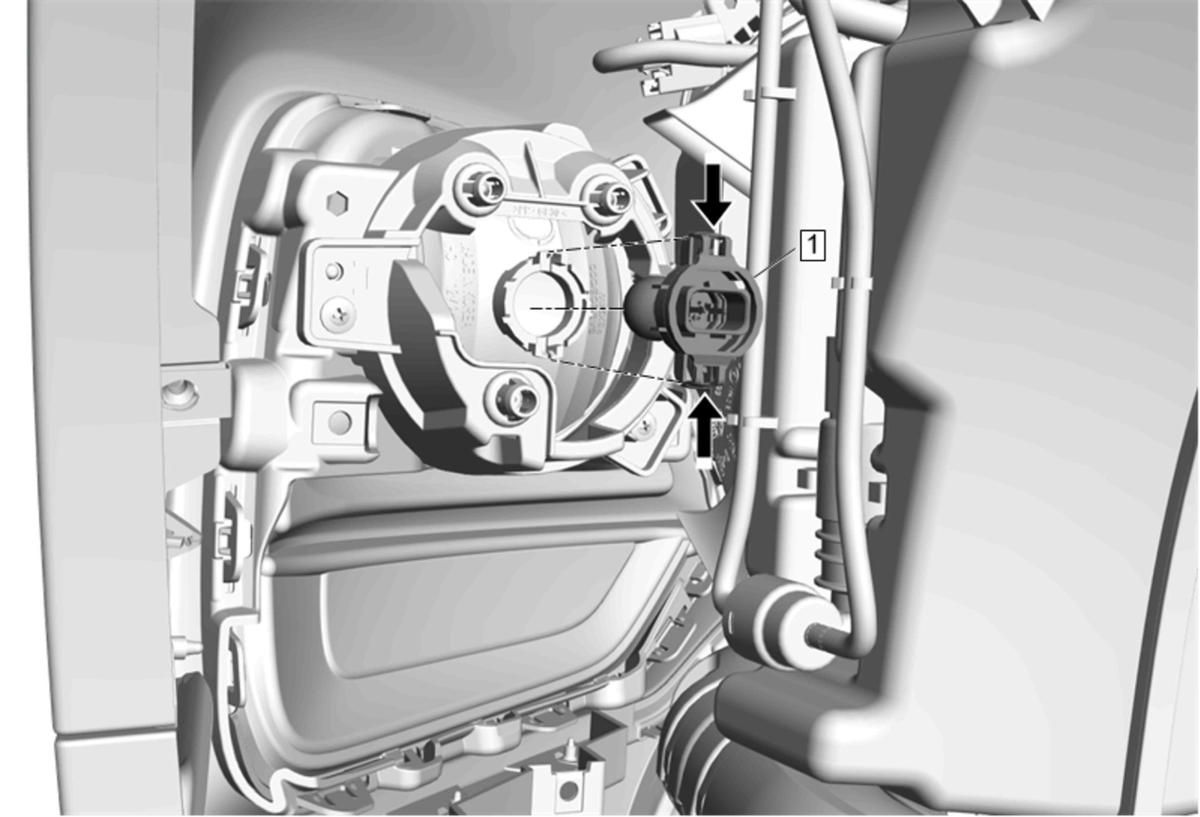

1	Front Fog Lamp Bulb WARNING: Refer to Halogen Bulb Warning . Procedure Disconnect the electrical connector. Depress the locking tabs and pull the front fog lamp bulb from the front fog lamp.

Callout

Component Name

Front Fog Lamp Bulb

WARNING:

Procedure

Disconnect the electrical connector.
Depress the locking tabs and pull the front fog lamp bulb from the front fog lamp.
