Front Fog Lamp Bulb Replacement (Buick)

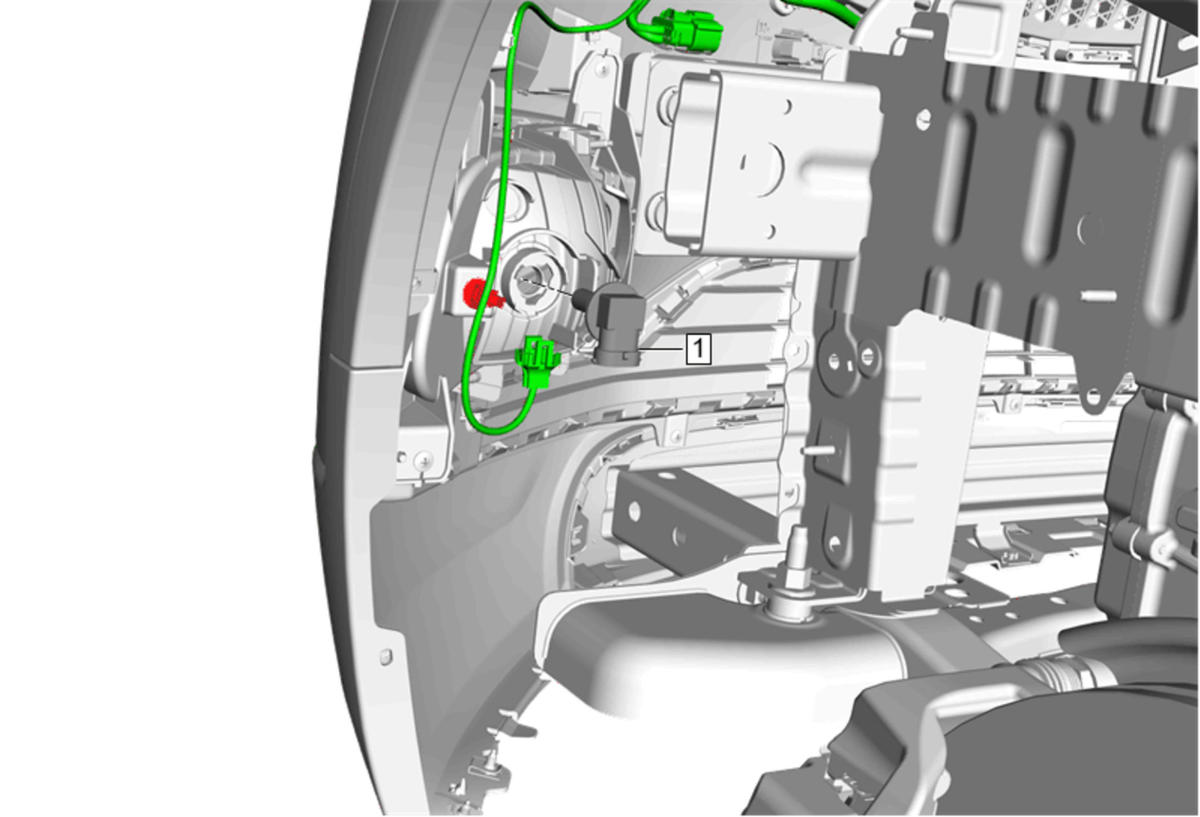

GM4444476
Callout Component Name
WARNING:

Refer to Halogen Bulb Warning .

Preliminary Procedure Front Wheelhouse Liner Replacement (Buick)
1 Front Fog Lamp Bulb

Procedure

  1. Disconnect the electrical connector.
  2. Reposition wiring harness retainer as needed.
  3. Rotate the bulb socket counterclockwise to remove it from the lamp housing.
