Radio Speaker Amplifier Replacement

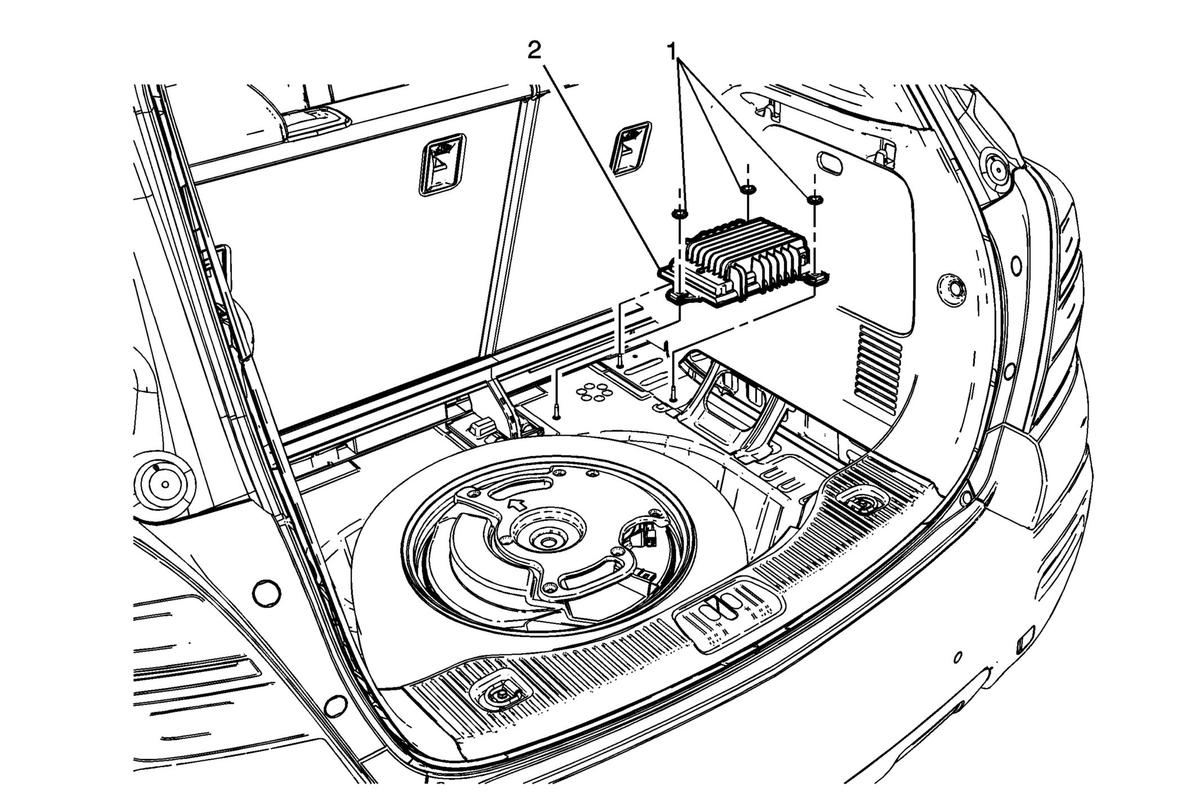

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the load floor front trim panel support - right side. Refer to Load Floor Front Trim Panel Support Replacement (Buick)Load Floor Front Trim Panel Support Replacement (Chevrolet) . |
|
| 1 | Radio Speaker Amplifier Fasteners (Qty: 3)
CAUTION:
Refer to Fastener Caution . |
| 2 | Radio Speaker Amplifier Procedure Disconnect the electrical connectors. |
