Radio Replacement (Chevrolet with IP1)

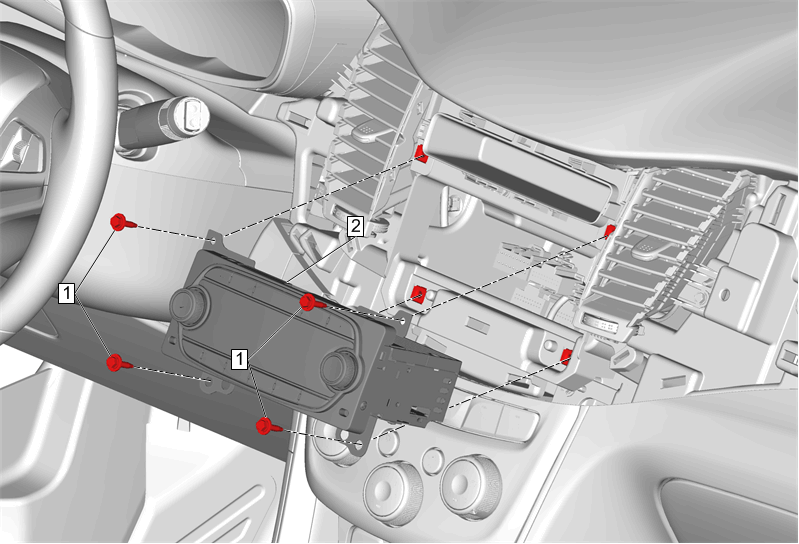

Callout	Component Name
Preliminary Procedure Instrument Panel Radio Front Trim Plate Replacement (RPO IP1, Chevrolet)
1	Radio Control Bolt [4x] CAUTION: Fastener Caution Tighten 2.5 N.m (22 lb in)
2	Radio Procedure Disconnect the electrical connectors. Perform the necessary programming and setup procedure: Control Module References

Callout

Component Name

Radio Control Bolt [4x]

CAUTION:

Tighten
2.5 N.m (22 lb in)

Radio

Procedure

Disconnect the electrical connectors.
Perform the necessary programming and setup procedure: Control Module References
