Q22 Intake Manifold Tuning Solenoid Valve (2H0)
|
|

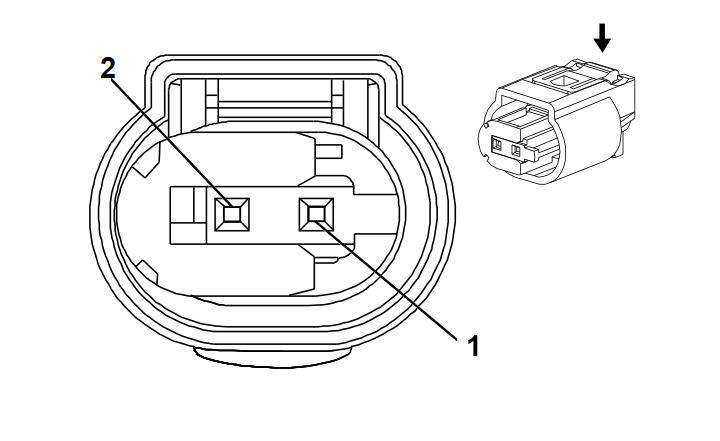

Connector Part Information
- Harness Type: Engine
- OEM Connector: 1-967644-1
- Service Connector: 13576533
- Description: 2-Way F 0.64 Micro-Quadlock Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-64B (LT BU) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
BU |
7302 |
Intake Manifold Tuning Valve (IMTV) Control - Signal |
I |
- |
| 2 |
0.5 |
VT/BU |
5293 |
Powertrain Main Relay Fused Supply 4 |
I |
- |
