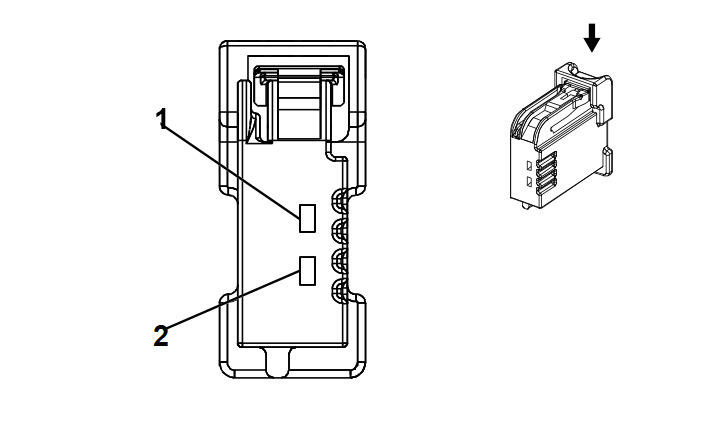

B61P Seat Belt Tension Sensor - Passenger
|
|
Connector Part Information
- Harness Type: PASSENGER SEAT
- OEM Connector: 6098-5527
- Service Connector: Service by Harness - See Part Catalog
- Description: 2-Way F 1.5 Series (GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
Not Available |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
OG/BN |
7571 |
Passenger Seat Belt Reminder Signal |
I |
- |
| 2 |
0.5 |
BK/OG |
1361 |
Passenger Seat Belt Switch Low Reference |
I |
- |
