Home >> Chevrolet >> 2018 >> Trax LT, AWD >> Repair and Diagnosis (Single Page) >> Accessories & Equipment >> Headlights >> Lighting System - Schematic Wiring Diagrams >> Schematic Wiring Diagrams >> Interior Lights Dimming Wiring Schematics (Chevrolet) >> Headlamp, Instrument Panel, and Steering Wheel Switches (Chevrolet)

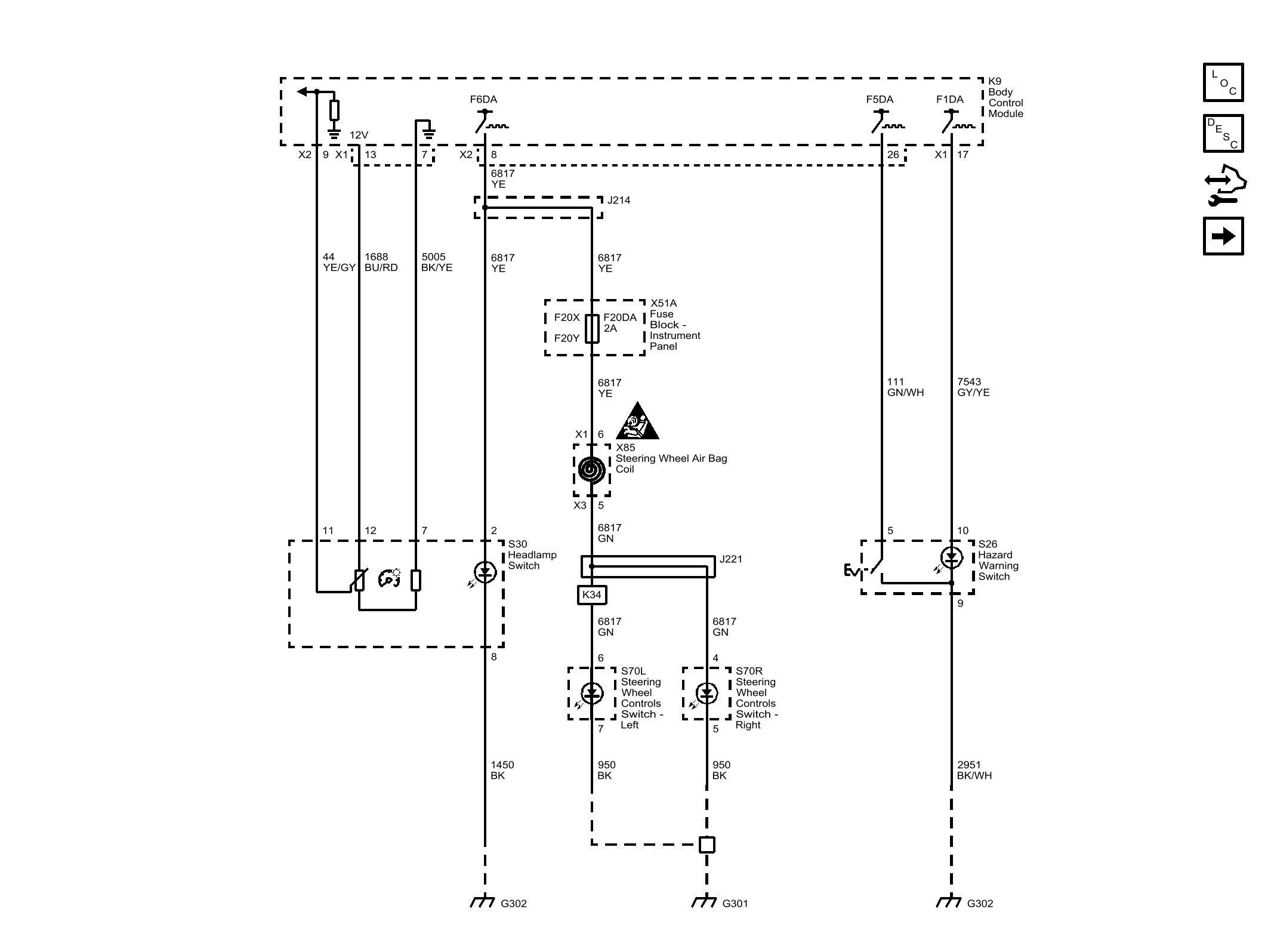

Headlamp, Instrument Panel, and Steering Wheel Switches (Chevrolet)

GM4708655
