Home >> Chevrolet >> 2018 >> Trax LT, AWD >> Repair and Diagnosis (Single Page) >> Accessories & Equipment >> Headlights >> Lighting System - Schematic Wiring Diagrams >> Schematic Wiring Diagrams >> Interior Lights Dimming Wiring Schematics (Buick) >> Controls, and Instrument Panel and Steering Wheel Switches (Buick)

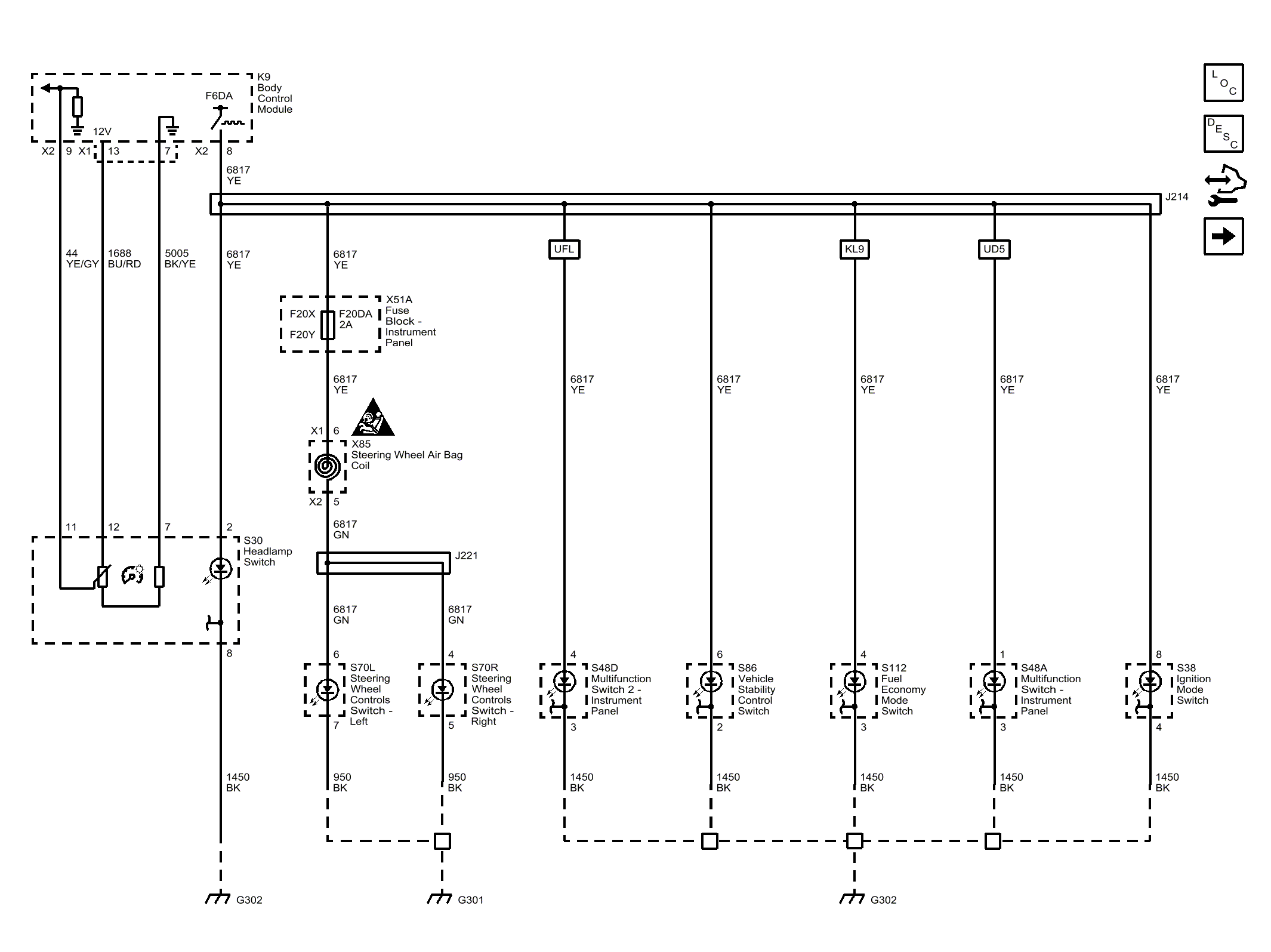

Controls, and Instrument Panel and Steering Wheel Switches (Buick)

GM4704195
