Lighting System - Schematic Wiring Diagrams
>>
Schematic Wiring Diagrams
>>
Headlights/Daytime Running Lights (DRL) Wiring Schematics (Chevrolet)
>>

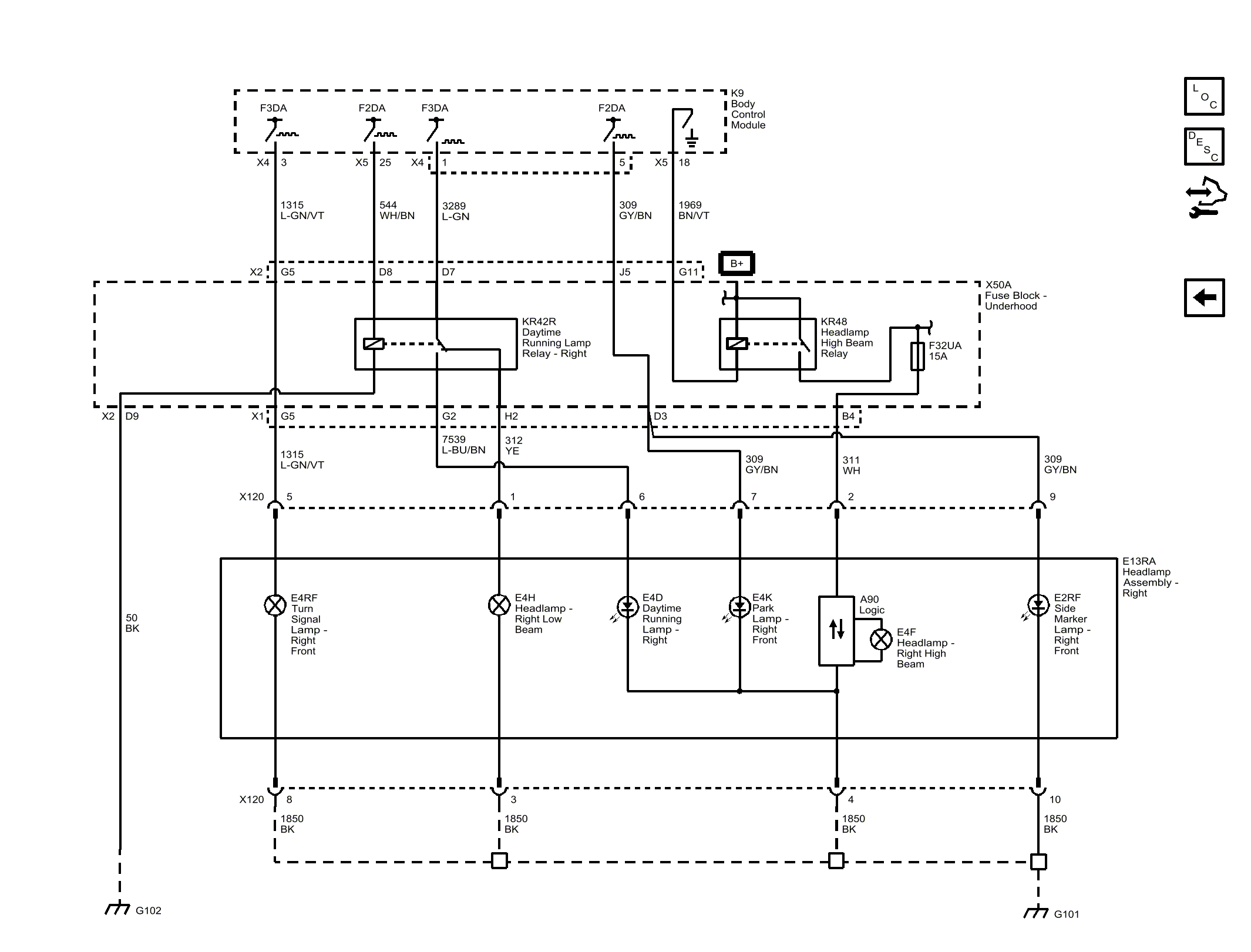

Right Front Headlamp, Turn Signal, Marker Lamp, Park Lamp, and Daytime Running Lamp (Chevrolet with SBV)
Right Front Headlamp, Turn Signal, Marker Lamp, Park Lamp, and Daytime Running Lamp (Chevrolet with SBV)
