Lighting System - Schematic Wiring Diagrams
>>
Schematic Wiring Diagrams
>>
Headlights/Daytime Running Lights (DRL) Wiring Schematics (Chevrolet)
>>

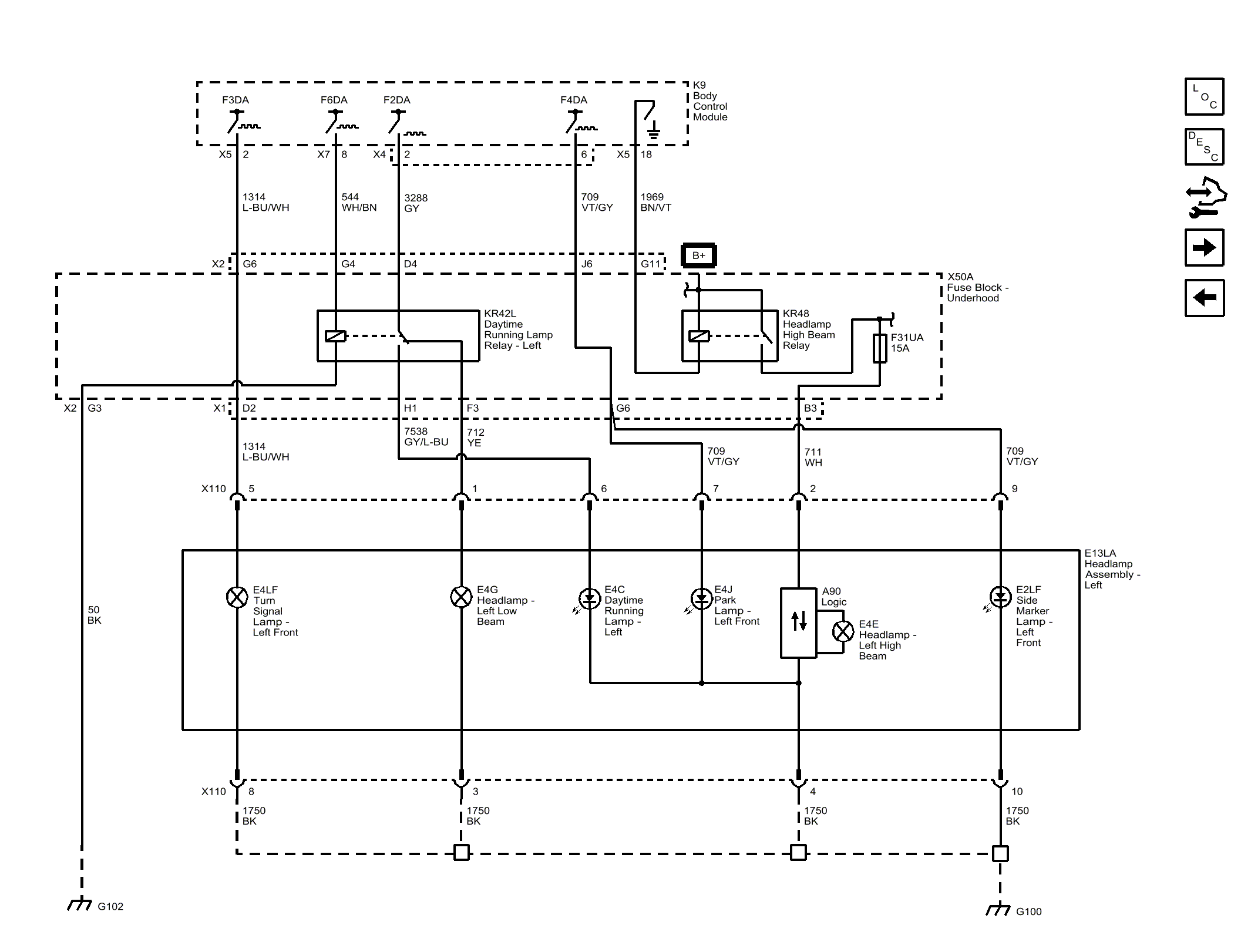

Left Front Headlamp, Turn Signal, Marker Lamp, Park Lamp, and Daytime Running Lamp (Chevrolet with SBV)
Left Front Headlamp, Turn Signal, Marker Lamp, Park Lamp, and Daytime Running Lamp (Chevrolet with SBV)
