Home >> Chevrolet >> 2018 >> Trax LT, AWD >> Repair and Diagnosis (Single Page) >> Accessories & Equipment >> Headlights >> Lighting System - Schematic Wiring Diagrams >> Schematic Wiring Diagrams >> Exterior Lights Wiring Schematics (Chevrolet) >> License Plate and Backup Lamps (Chevrolet)

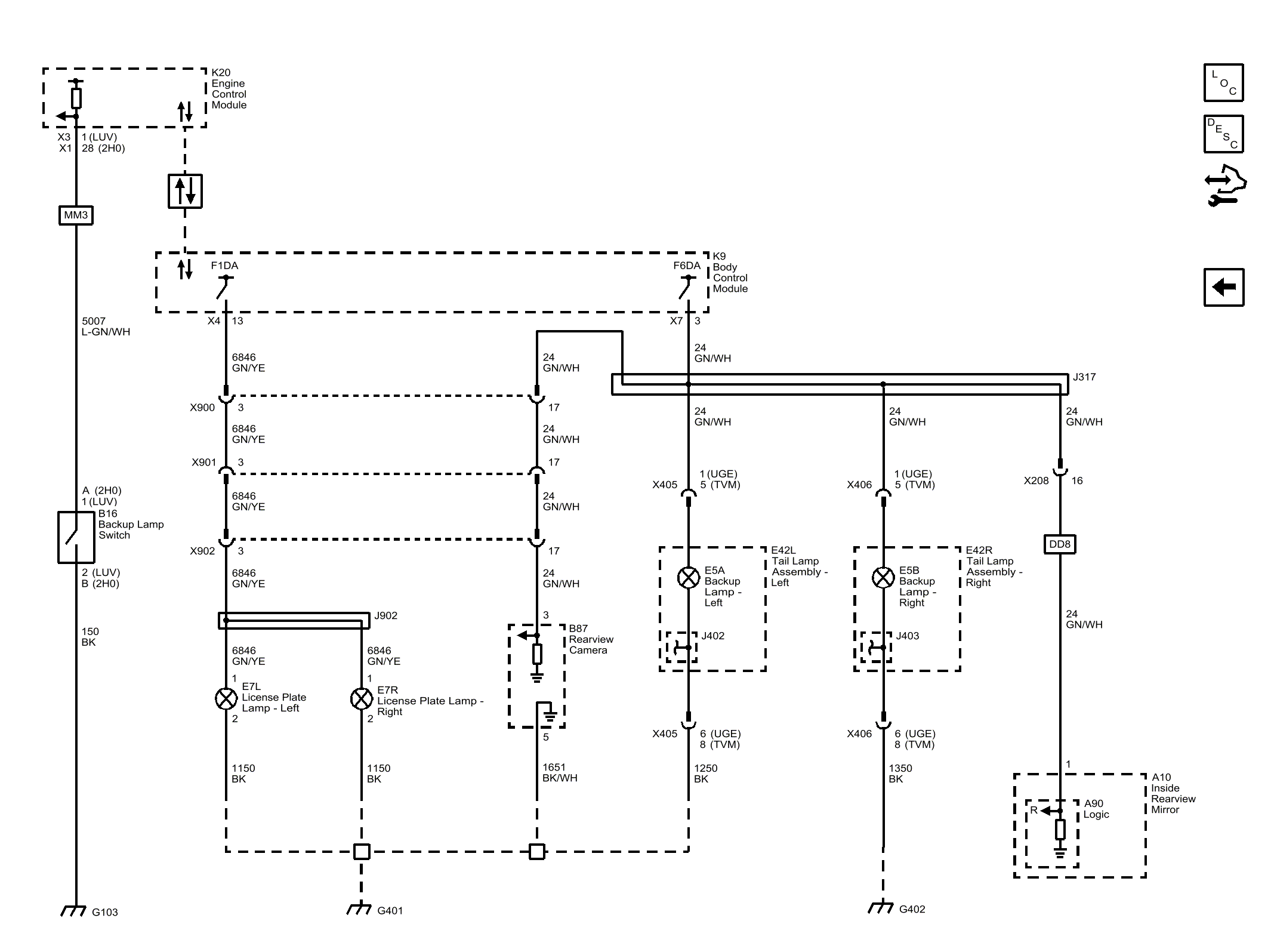

License Plate and Backup Lamps (Chevrolet)

GM4708652
