Turn Signal Bulb Replacement - Right Side (LUV with SBM)

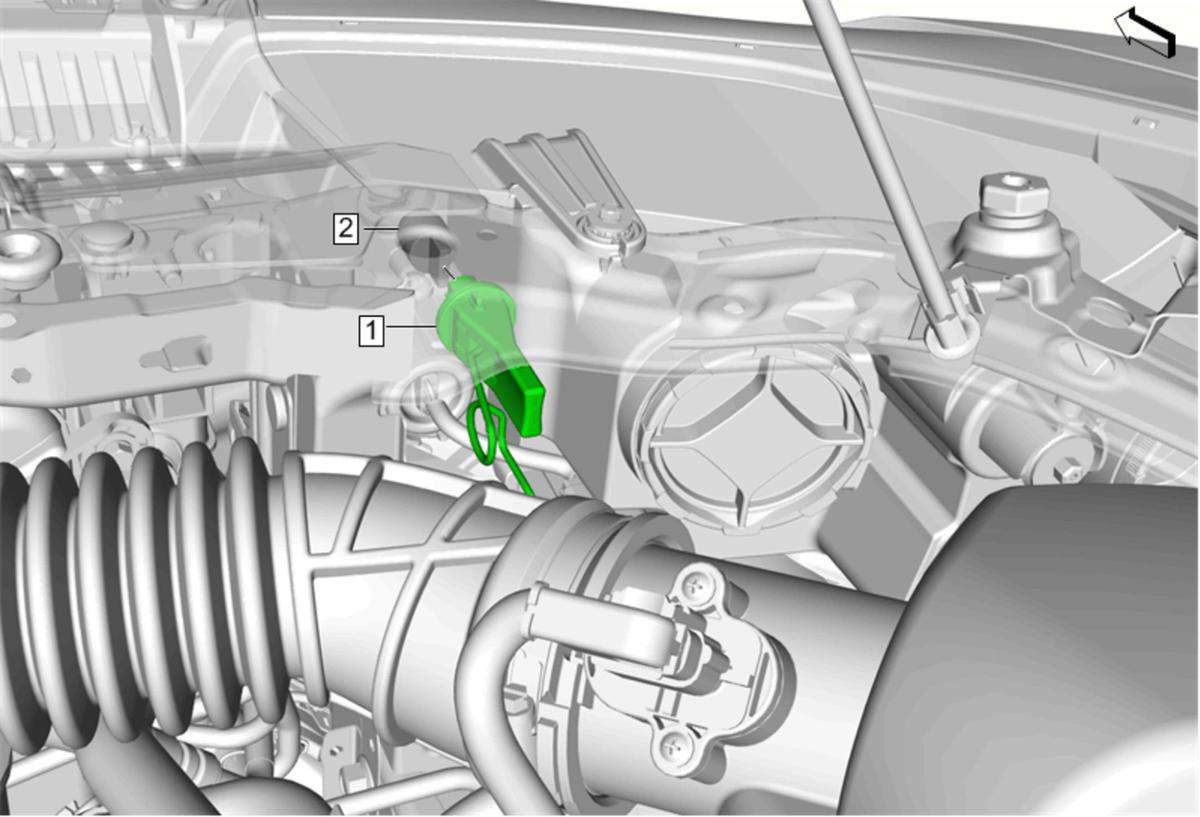

| Callout | Component Name |
|---|---|
| Preliminary Procedure Air Cleaner Inlet Duct Replacement |
|
| 1 | Turn Signal Lamp Bulb Socket Procedure Rotate the bulb socket counterclockwise to remove it from the lamp housing. |
| 2 | Turn Signal Bulb - Right Side Procedure Pull the bulb from the bulb socket. |
