Rear Fascia Signal Lamp Replacement (Chevrolet)

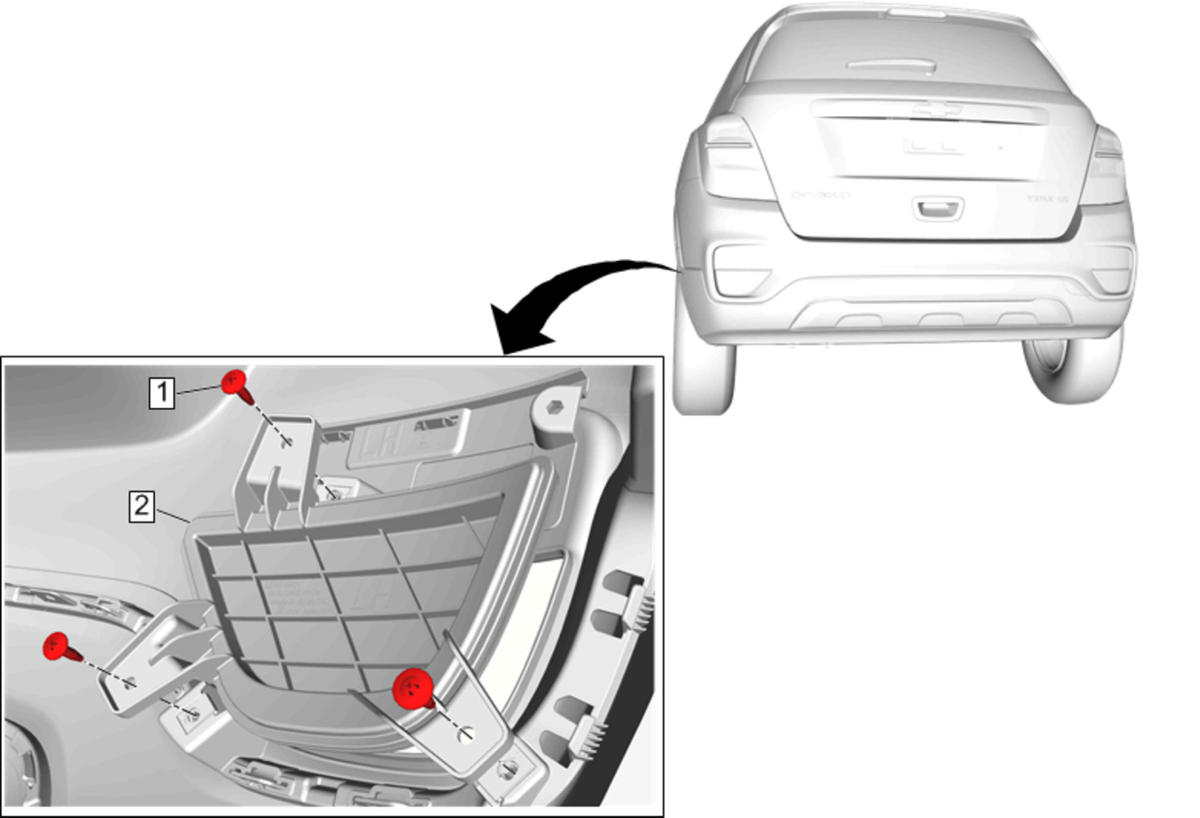

GM4515830
Callout Component Name
Preliminary Procedure
Raise and support the vehicle. Lifting and Jacking the Vehicle
1 Rear Fascia Signal Lamp Screw [3x]
CAUTION:

Refer to Fastener Caution .


Tighten
2.5 N.m (22 lb in)
2 Rear Fascia Signal Lamp
Procedure
Lower the vehicle.
