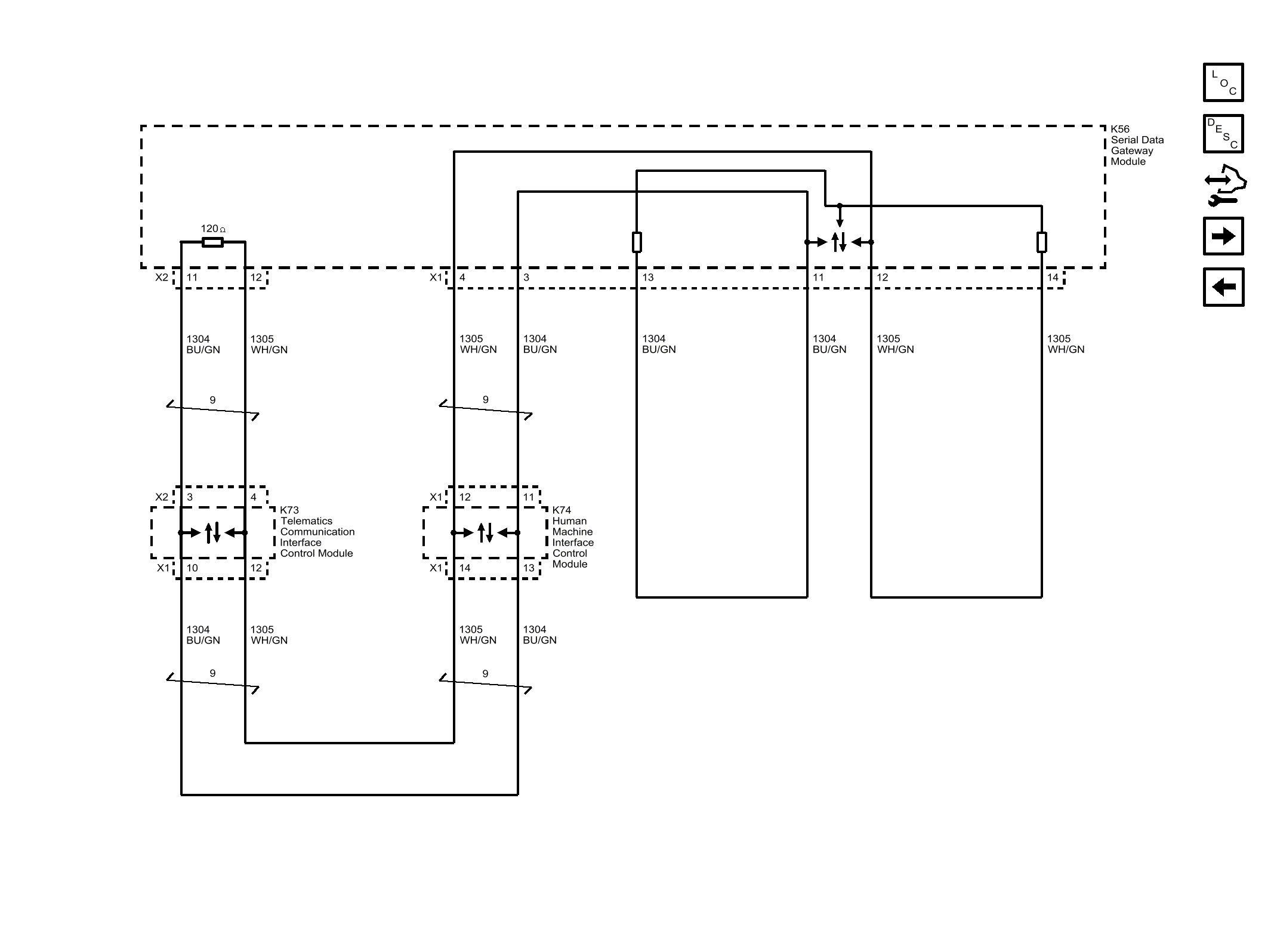

Home >> Chevrolet >> 2018 >> Trax LT, AWD >> Repair and Diagnosis (Single Page) >> Accessories & Equipment >> Communication Devices >> Data Communication System - Schematic Wiring Diagrams >> Schematic Wiring Diagrams >> Data Communication Wiring Schematics (Buick) >> Isolated High Speed GMLAN (UE1) (Buick)
