Sun Load Temperature and Ambient Light and Security Indicator Sensor Replacement

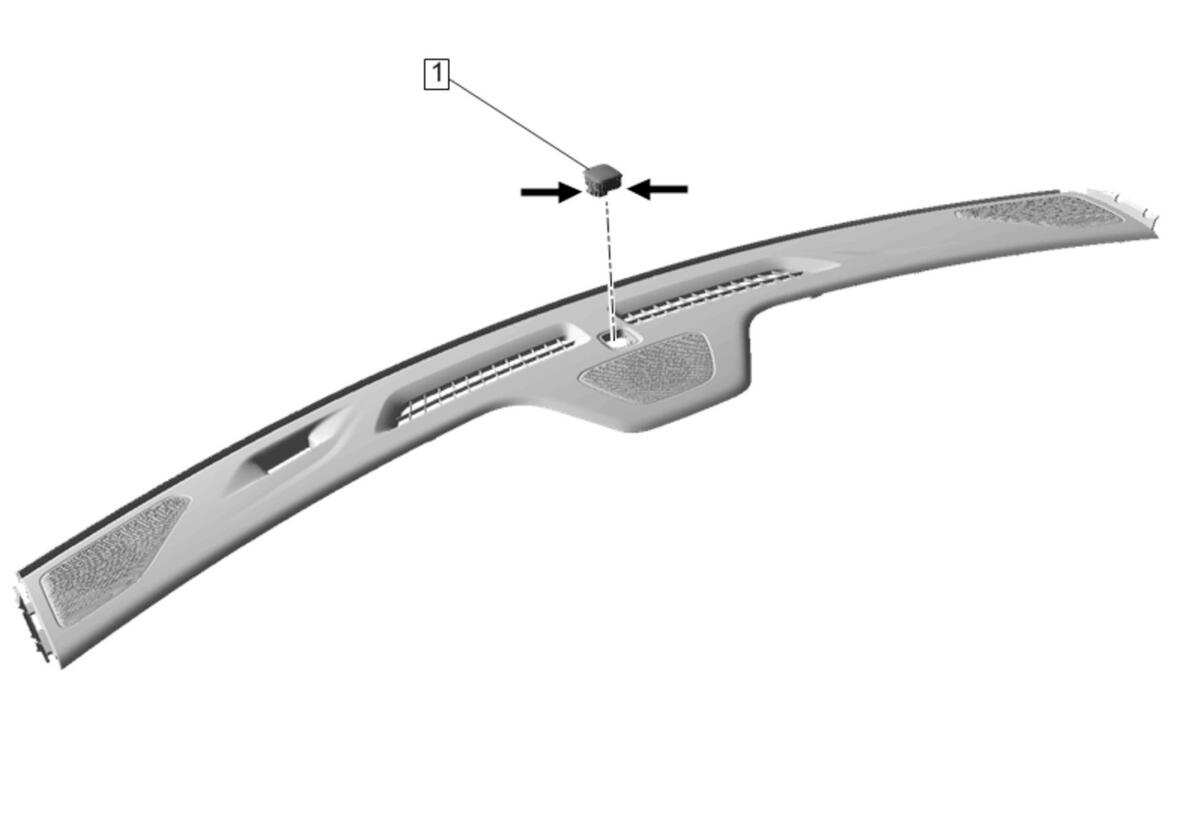

GM4737714
Callout Component Name
Preliminary Procedure
Instrument Panel Extension Replacement
1 Sun Load Temperature and Ambient Light and Security Indicator Sensor
Procedure
Depress the sun load temperature and ambient light and security indicator sensor tabs to remove from the instrument panel extension.
