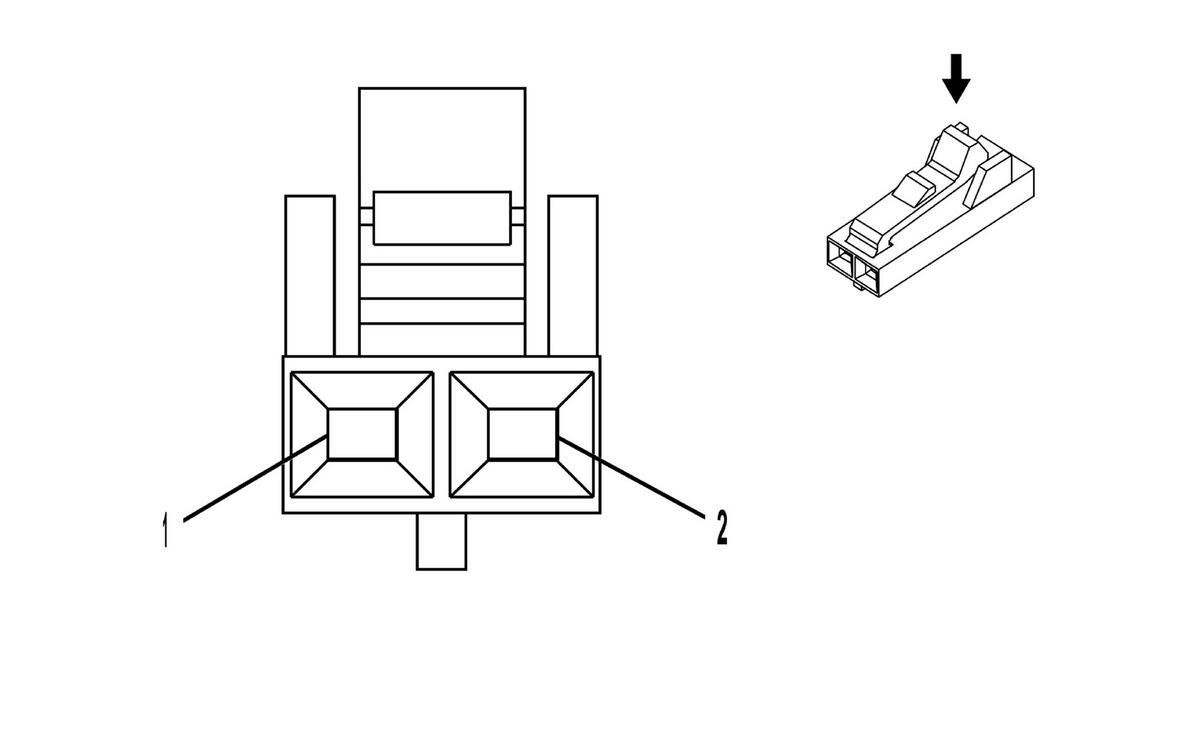

S2L Transmission Manual Shift Switch - Left (M3W)
|
|
Connector Part Information
- Harness Type: Steering Wheel
- OEM Connector: 104257-1
- Service Connector: Service by Harness - See Part Catalog
- Description: 2-Way F 0.64 Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
Not Available |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
BK |
1550 |
Ground |
I |
- |
| 2 |
0.5 |
YE |
5525 |
Tap Up/Tap Down Enable Signal |
I |
- |
