M29R Headlamp Leveling Actuator - Right (TR6)
|
|

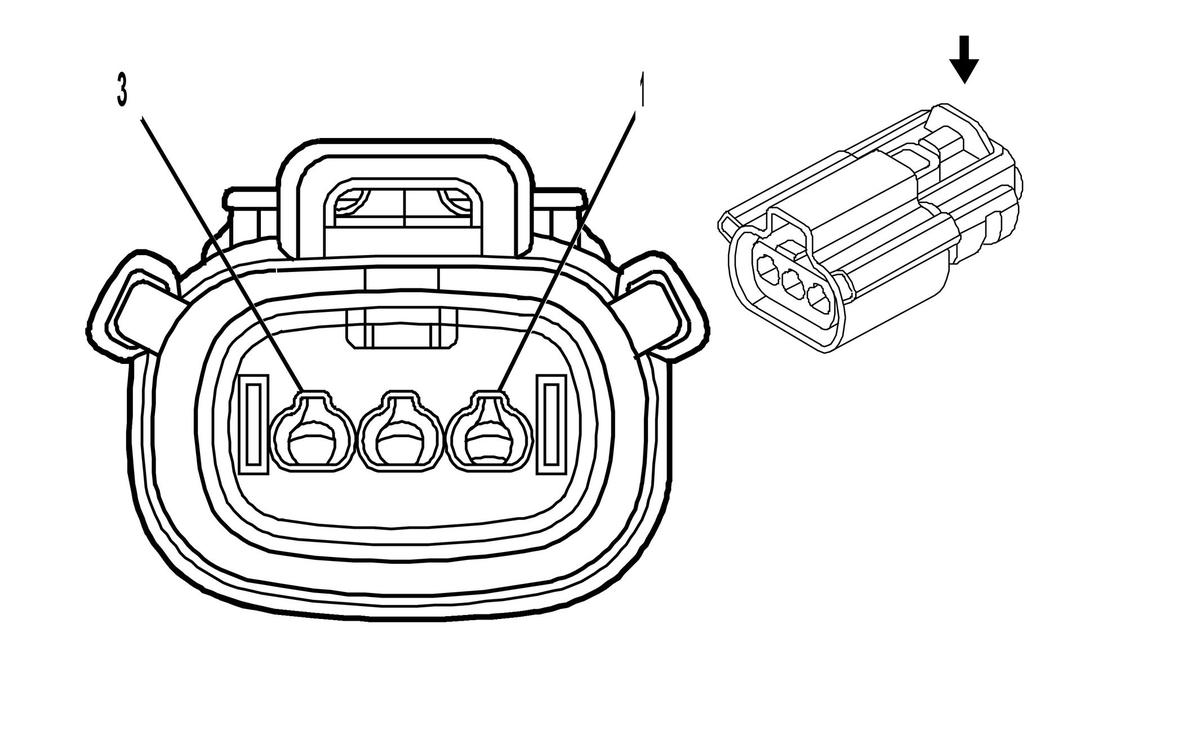

Connector Part Information
- Harness Type: Forward Lamp
- OEM Connector: 13503225
- Service Connector: 19301648
- Description: 3-Way F 150 MX Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-2A (GY) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
BN/YE |
189 |
Headlamp Leveling Motor Control |
I |
- |
| 2 |
0.5 |
VT/GY |
539 |
Run/Crank Ignition 1 Voltage |
I |
- |
| 3 |
0.5 |
BK |
250 |
Ground |
I |
- |
