M109LR Folding Seat Back Unlatch Motor - 3rd Row Left (AS8)
|
|

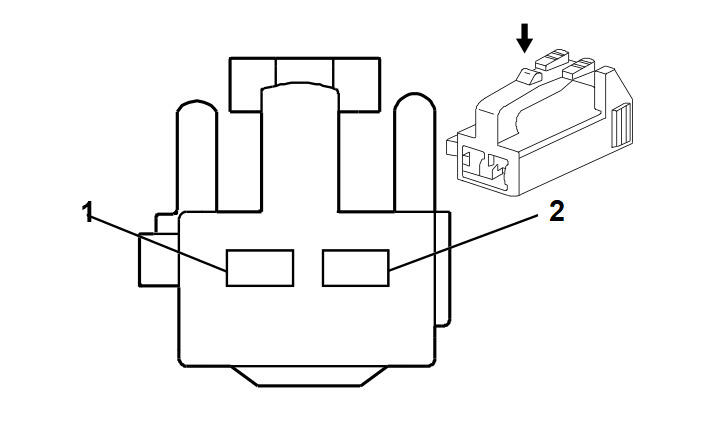

Connector Part Information
- Harness Type: Left Rear Seat
- OEM Connector: 7283-1020
- Service Connector: Service by Harness - See Part Catalog
- Description: 2-Way F 2.3 Series (NA)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
Not Available |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
1.5 |
GY |
4227 |
LH Third Row Seat Recline Forward Lock Actuator Control |
I |
- |
| 2 |
1.5 |
YE/WH |
4228 |
LH Third Row Seat Recline Rearward Lock Actuator Control |
I |
- |
