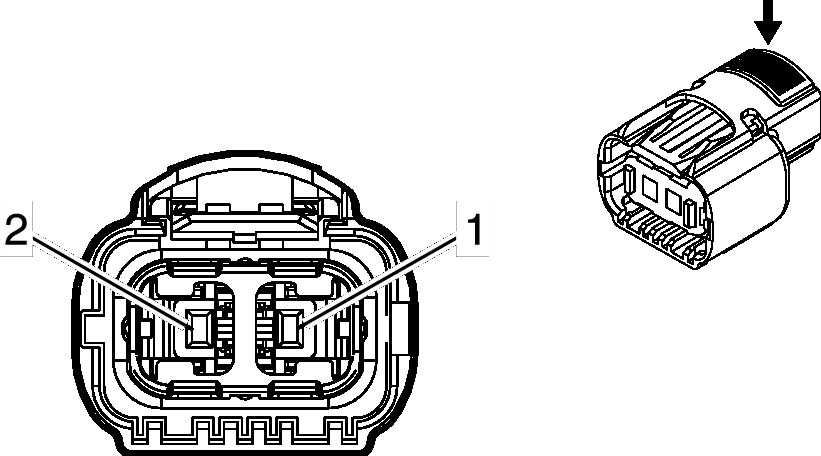

E29LF Fog Lamp - Left Front (T3U)
|
|
Connector Part Information
- Harness Type: Front Fascia
- OEM Connector: F750200
- Service Connector: Service by Harness - See Part Catalog
- Description: 2-Way F 1.5 GTSeries, Sealed (WH)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-14 (GN) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
1.5 |
BN/VT |
2234 |
Front Fog Lamp Control |
I |
- |
| 2 |
1.5 |
BK |
150 |
Ground |
I |
- |
