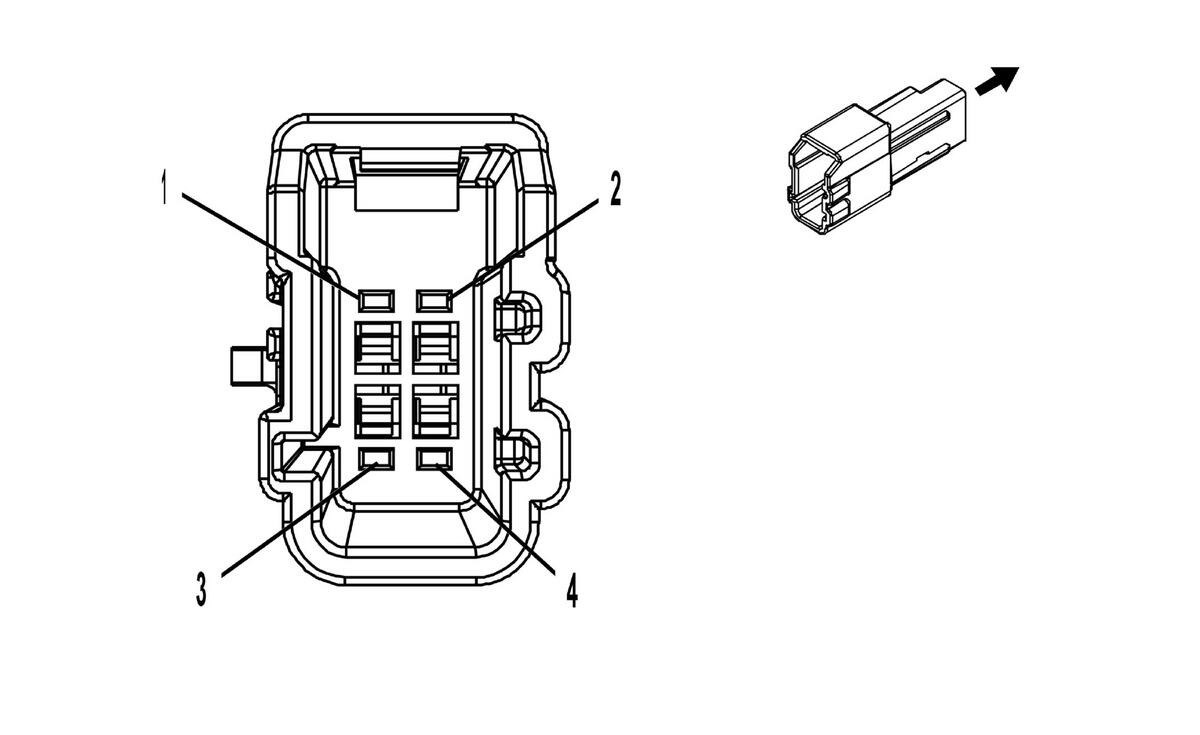

E14A Seat Heating Element - Driver Back (KA1)
|
|
Connector Part Information
- Harness Type: Driver Seat
- OEM Connector: 13595573
- Service Connector: Service by Harness - See Part Catalog
- Description: 4-Way M 1.2 Series (GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
No Tool Required |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.75 |
BN/VT |
2077 |
Driver Heated Seat Element Control |
I |
- |
| 2 |
0.35 |
BU |
2425 |
Driver Heated Back NTC Signal |
I |
- |
| 3 |
0.5 |
BK/YE |
2080 |
Driver Heated Seat NTC Low Reference |
I |
- |
| 4 |
0.75 |
BN/BK |
2078 |
Driver Heated Seat Element Low Reference |
I |
- |
