B225L Sideview Camera - Left
|
|

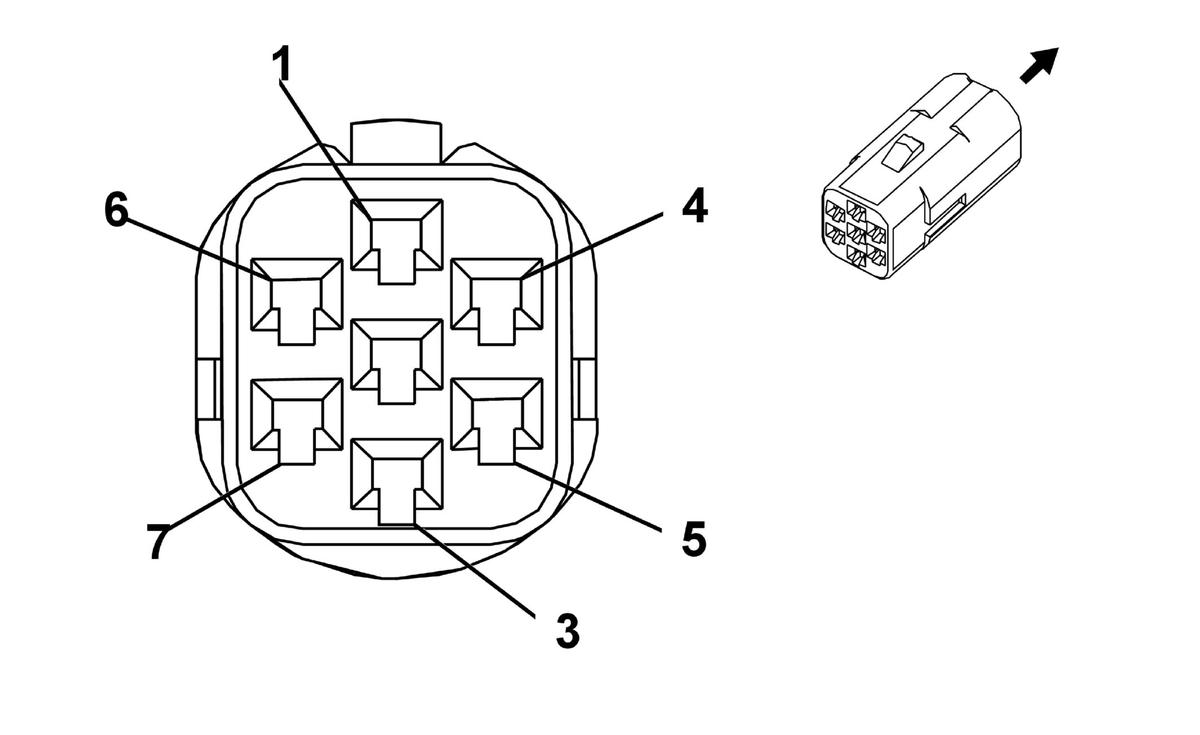

Connector Part Information
- Harness Type: Outside Rearview Mirror - Driver
- OEM Connector: 13576423
- Service Connector: Service by Harness - See Part Catalog
- Description: 7-Way F Multilock Series (GN)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
Not Available |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0 |
YE |
6972 |
Camera Signal 2 + |
I |
- |
| 2 - 3 |
- |
- |
- |
Not Occupied |
- |
- |
| 4 |
0 |
YE/BK |
6973 |
Camera Signal 2 |
I |
- |
| 5 |
0 |
BK/BK |
2150 |
Ground |
I |
- |
| 6 |
0 |
TN/WH |
2063 |
6V Reference |
I |
- |
| 7 |
- |
- |
- |
Not Occupied |
- |
- |
