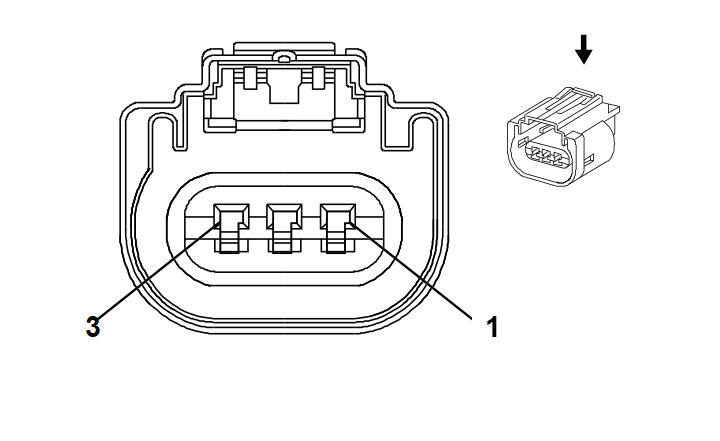

B150 Fuel Tank Pressure Sensor
|
|
Connector Part Information
- Harness Type: Fuel Tank
- OEM Connector: 13503515
- Service Connector: Service by Harness - See Part Catalog
- Description: 3-Way F 1.5 Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
Not Available |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
BU/WH |
890 |
Fuel Tank Pressure Sensor Signal |
I |
NTB/NUB |
| 2 |
0.5 |
BK/GN |
6281 |
Fuel Level Sensor Low Reference |
I |
NTB/NUB |
| 3 |
0.5 |
YE/RD |
2709 |
Fuel Tank Pressure Sensor 5V Reference |
I |
NTB/NUB |
