B52A Heated Oxygen Sensor 1
|
|

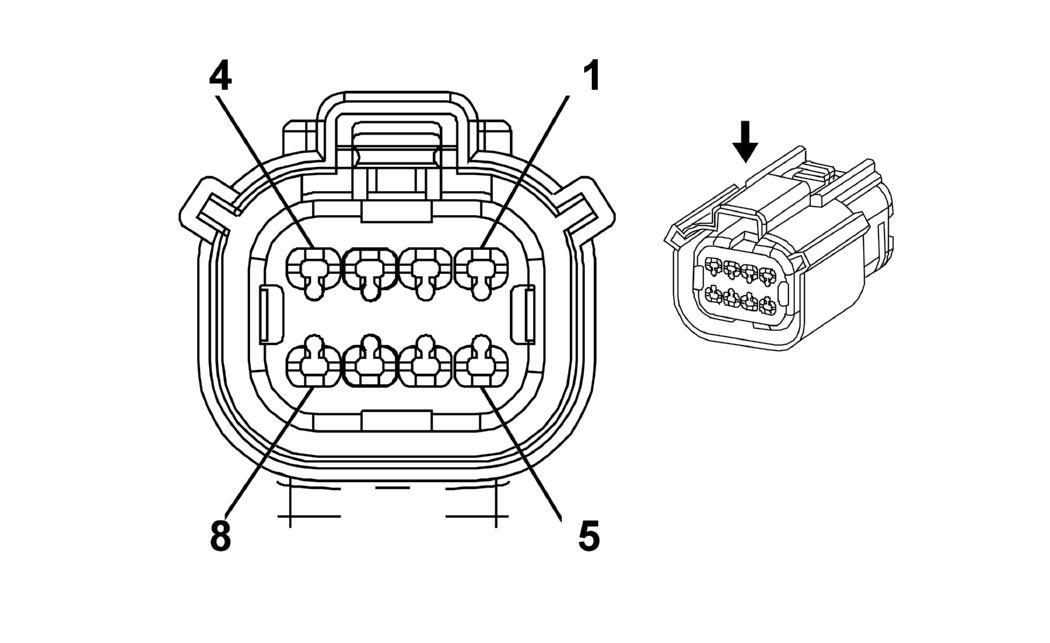

Connector Part Information
- Harness Type: Engine
- OEM Connector: 13586514
- Service Connector: 19330671
- Description: 8-Way F 150 MX Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-2A (GY) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
BN |
6934 |
Heated Oxygen Sensor Ground |
I |
- |
| 2 |
0.5 |
YE/GY |
6936 |
Heated Oxygen Sensor Collector Signal |
I |
- |
| 3 |
0.5 |
BN/WH |
6933 |
Heated Oxygen Sensor Current Pump Signal |
I |
- |
| 4 |
- |
- |
- |
Not Occupied |
- |
- |
| 5 |
0.5 |
VT/BU |
5293 |
Powertrain Main Relay Fused Supply 4 |
I |
- |
| 6 |
0.5 |
GY/WH |
3113 |
Heated Oxygen Sensor Heater Low Control Bank 1 Sensor 1 |
I |
- |
| 7 |
0.5 |
GN |
6935 |
Heated Oxygen Sensor Current Adjust Signal |
I |
- |
| 8 |
- |
- |
- |
Not Occupied |
- |
- |
